SO-BE-160-040 Infrared Stock Beam Expander
SO-BE-160-040 Infrared Stock Beam Expander
SKU:STO-4595e6
Enhance beam precision with the SO-BE-160-040 Infrared Stock Beam Expander's 4× magnification and adjustable divergence.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
SO-BE-160-040 Infrared Stock Beam Expander
$799.99
Quantity: 1
Claim Your Seller Account
SO-BE-160-040 Infrared Stock Beam Expander
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

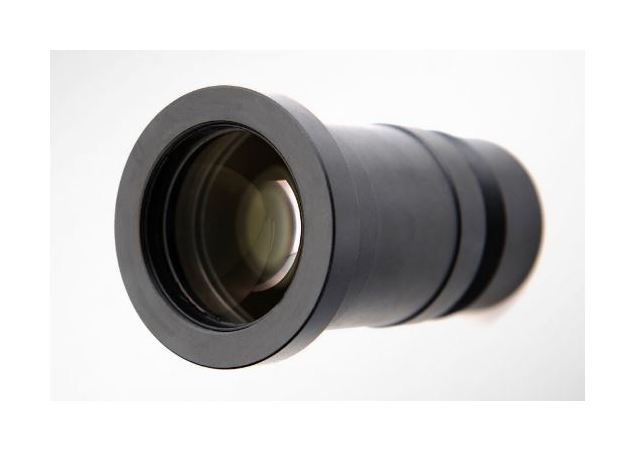

The SO-BE-160-040 Infrared Stock Beam Expander is a versatile optical tool designed for precise beam expansion applications. With design wavelengths of 9.3 µm, 10.6 µm, and 1064 nm, this beam expander offers a 4× magnification, ensuring accurate and consistent performance. The adjustable divergence angle of ±4 to ±5 allows for fine-tuning, while the maximum pupil diameter of 4 and outgoing spot diameter of 16 ensure optimal beam control. The interface is M22×0.75, and the compact design features various shell lengths and diameters to suit different needs. Ideal for institutional and government procurement needs, this beam expander meets stringent quality standards for reliable performance.
Product Specifications
Specifications Adjustable Divergence Angle
±4 | ±5
Specifications Design Wavelength
9.3 µm | 10.6 µm | 1064 nm
Specifications Interface
M22Ã0.75
Specifications Magnification
4Ã
Specifications Maximum Outgoing Spot Diameter
16
Specifications Maximum Pupil Diameter
4
Specifications Maximum Shell Diameter
25 | 28 | 29 | 34
Specifications Maximum Shell Length
67 | 71 | 75 | 76 | 77 | 81.14
