SO-LWIR-135-12 Stock Long-Wave Infrared Lens
SO-LWIR-135-12 Stock Long-Wave Infrared Lens
SKU:STO-8a7cd6
Enhance thermal imaging with the SO-LWIR-135-12 Long-Wave Infrared Lens. Exceptional clarity and wide field of view for precise thermal imaging applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SO-LWIR-135-12 Stock Long-Wave Infrared Lens
$349.99
Quantity: 1
Claim Your Seller Account
SO-LWIR-135-12 Stock Long-Wave Infrared Lens
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

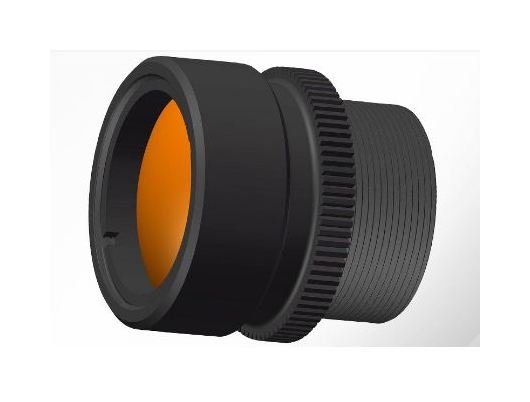

The SO-LWIR-135-12 Stock Long-Wave Infrared Lens is a high-performance optical component designed for precise thermal imaging applications. With a focal length of 13.5mm and an F-Number of 1.2, this lens offers exceptional image clarity and accuracy. The lens features a wide field of view of 31.7°(H) x 25.6°(V), making it ideal for capturing detailed thermal images. It operates within the working band of 8-12 µm, ensuring compatibility with a wide range of thermal detectors. The fixed focus control and M20x0.5 mount provide stability and ease of installation, while the 640×512-12 µm detector support ensures reliable performance.
Product Specifications
Specifications Back Working Distance
22.4 mm
Specifications Detector
640Ã512-12 µm
Specifications Field Of View
31.7°(H)x25.6°(V)
Specifications Focal Length
13.5 mm
Specifications Focus Control
Fixed
Specifications F Number
1.2
Specifications Mount
M20x0.5
Specifications Working Band
8-12 µm
