SO-LWIR-200-10 Long-Wave Infrared (LWIR) Lens
SO-LWIR-200-10 Long-Wave Infrared (LWIR) Lens
SKU:STO-aa5535
Enhance thermal imaging precision with the SO-LWIR-200-10 Long-Wave Infrared (LWIR) Lens. Focal Length: 20mm, F-Number: 1, Wide Field of View, Manual Focus Control. Ideal for 8-12 µm working band.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SO-LWIR-200-10 Long-Wave Infrared (LWIR) Lens
$299.99
Quantity: 1
Claim Your Seller Account
SO-LWIR-200-10 Long-Wave Infrared (LWIR) Lens
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

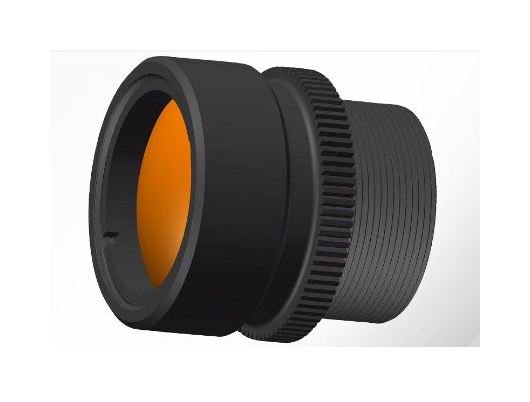

The SO-LWIR-200-10 Stock Long-Wave Infrared (LWIR) Lens offers unparalleled optical performance, featuring a focal length of 20mm and an F-Number of 1. With a wide field of view of 30.4°(H) x 23°(V) and a working band of 8-12 µm, this lens provides precise imaging capabilities. The manual focus control and M34x0.75 mount ensure compatibility and ease of use. Designed for detectors of 640x480 resolution and 17 µm, this lens is ideal for capturing high-quality thermal images in various applications.
Product Specifications
Specifications Back Working Distance
13.3 mm
Specifications Detector
640Ã480-17 µm
Specifications Field Of View
30.4°(H)x23°(V)
Specifications Focal Length
20 mm
Specifications Focus Control
Manual
Specifications F Number
1
Specifications Mount
M34x0.75
Specifications Working Band
8-12 µm
