SO-LWIR-300-10 Long-Wave Infrared Lens
SO-LWIR-300-10 Long-Wave Infrared Lens
SKU:STO-7e60c0
Enhance thermal imaging accuracy with the SO-LWIR-300-10 Lens. Focal Length: 30mm, F-Number: 1, Wide Field of View: 20.5°x15.4°, 8-12µm Band.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SO-LWIR-300-10 Long-Wave Infrared Lens
$349.99
Quantity: 1
Claim Your Seller Account
SO-LWIR-300-10 Long-Wave Infrared Lens
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

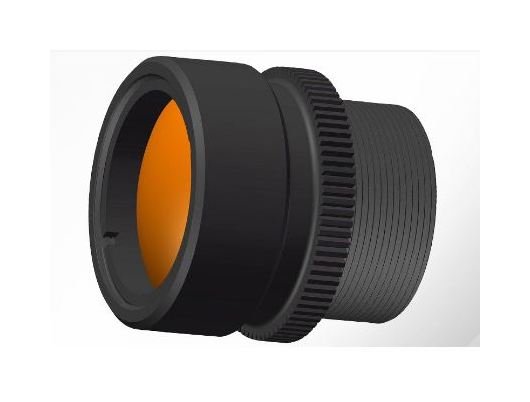

The SO-LWIR-300-10 Stock Long-Wave Infrared (LWIR) Lens is a high-quality optic designed for precise thermal imaging applications. With a focal length of 30mm and an F-number of 1, it provides exceptional clarity for detailed analysis. The lens offers a wide field of view at 20.5°(H)x15.4°(V) and operates within the 8-12 µm thermal range. Whether manual or motorized focus control is needed, this lens delivers versatility with a back working distance of 18.22mm. Compatible with a M34x0.5 mount and suitable for detectors up to 640×480-17 µm, this lens ensures reliable performance for demanding thermal imaging tasks.
Product Specifications
Specifications Back Working Distance
18.22 mm
Specifications Detector
640Ã480-17 µm
Specifications Field Of View
20.5°(H)x15.4°(V)
Specifications Focal Length
30 mm
Specifications Focus Control
Manual/ Motorized
Specifications F Number
1
Specifications Mount
M34x0.5
Specifications Working Band
8-12 µm
