SO-LWIR-350-10 Long-Wave Infrared Lens
SO-LWIR-350-10 Long-Wave Infrared Lens
SKU:STO-d9c4e9
Achieve precise thermal imaging with the SO-LWIR-350-10 Stock Long-Wave Infrared (LWIR) Lens. Focal length: 35mm, F-number: 1, Wide field of view options, 8-12 µm working band, Fixed or manual focus control, Mount: M34x0.75, Detector compatibility: 640×480-17 µm | 640×512-12 µm.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SO-LWIR-350-10 Long-Wave Infrared Lens
$299.99
Quantity: 1
Claim Your Seller Account
SO-LWIR-350-10 Long-Wave Infrared Lens
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

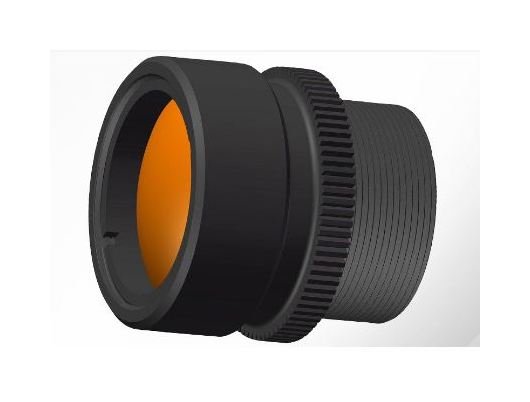

The SO-LWIR-350-10 Stock Long-Wave Infrared (LWIR) Lens is a high-quality optical component designed for precise thermal imaging applications. With a focal length of 35mm and a wide F-number of 1, this lens delivers exceptional clarity and thermal sensitivity. Its versatile field of view options provide flexibility in capturing infrared images with angles ranging from 12.5°(H)x10°(V) to 17.6°(H)x13.2°(V). The lens operates in the 8-12 µm working band, making it ideal for various thermal imaging tasks. Featuring options for fixed or manual focus control and compatible with detectors of 640×480-17 µm or 640×512-12 µm, this lens offers superior performance in demanding infrared imaging environments.
Product Specifications
Specifications Back Working Distance
13.5 mm | 16 mm
Specifications Detector
640Ã480-17 µm | 640Ã512-12 µm
Specifications Field Of View
12.5°(H)x10°(V) | 17.6°(H)x13.2°(V)
Specifications Focal Length
35 mm
Specifications Focus Control
Fixed | Manual Focus
Specifications F Number
1
Specifications Mount
M34x0.75
Specifications Working Band
8-12 µm
