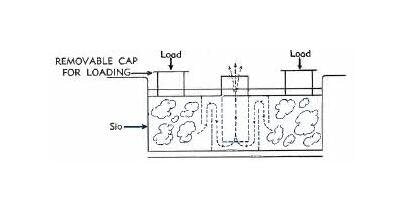

The SO Series Silicon Monoxide Box Sources are expertly designed for institutional and government applications, offering enhanced features for precise material evaporation. With baffling and shielding similar to the SM series, these sources ensure an indirect path from source material to substrate. Key features include longer lifespan, leakage prevention, in-situ loading capabilities without system removal, and a completely sealed one-unit construction. Ideal for research institutions and government facilities requiring reliable and efficient material deposition solutions.
Product Specifications
Features 0
The new SO Series silicon monoxide source offers the following features: Longer lifeEliminates leakageLoading without removal from system and âcompletely sealedâ one unit construction.
Manufacturing Notes 0
Large SO Series Sources available on request

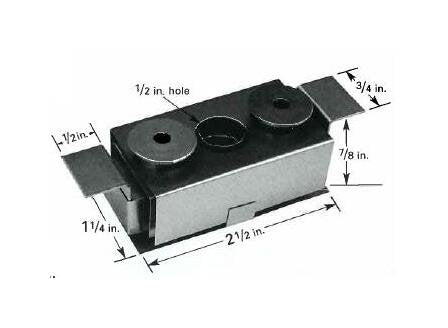

Specifications Base Length
2 1/2 in
Specifications Current
226 A
Specifications Evaporation Direction
Up
Specifications Height
7/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
6.5 g
Specifications Power
282 W
