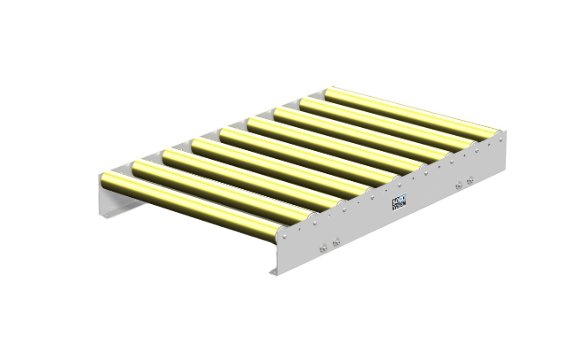

SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor
SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor
SKU:PAC-e21b15
Reliable SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor for robust pallet handling. Electro-galvanized steel, 80mm rollers, and 1,500 kg payload capacity. Ideal for packaging facilities & warehouses.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Claim Your Seller Account
SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOCO 1170mm x 1000mm Non-Driven Pallet Roller Conveyor offers robust pallet handling with a payload capacity of up to 1,500 kg per pallet and motor unit. Featuring electro-galvanized steel construction, 80mm conveying rollers, and secure bearing systems, this conveyor ensures efficient and reliable movement of pallet loads. With cold-bend angle profiles and bolted C-profile cross bars for enhanced support, this conveyor is designed for durability and ease of maintenance. Compliant with industry standards, this conveyor is an ideal solution for packaging facilities and warehouses seeking safety, efficiency, and longevity in their material handling operations.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
1000 mm
Dimensions Width
1170 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
