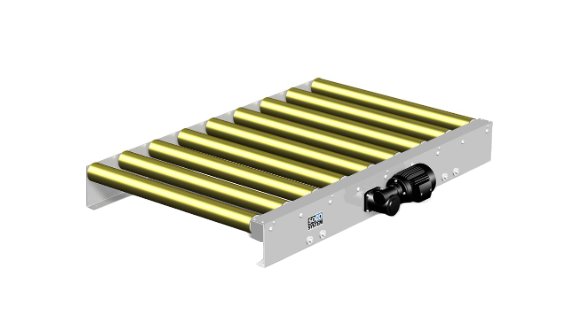

SOCO 1170mm x 1000mm Pallet Roller Conveyor with Gear Motor
SOCO 1170mm x 1000mm Pallet Roller Conveyor with Gear Motor
SKU:PAC-7b5e97
Efficient and durable 1170mm x 1000mm Pallet Roller Conveyor for industrial pallet handling.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The SOCO 1170mm x 1000mm Pallet Roller Conveyor with Side-Mounted Gear Motor is a robust and efficient solution ideal for pallet handling in industrial settings. Constructed with quality electro-galvanized steel components, this conveyor ensures durability and reliability. With a maximum payload capacity of 1500 kg, coupled with a low maintenance 0.37kW gear motor, it can handle heavy loads with ease. The silent operation, smooth design, and easy relocation features make this conveyor a practical choice for seamless material handling operations.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
1000 mm
Dimensions Width
1170 mm
Features Features
All sections are supplied with coupling fittings.Silent - minimal friction.Smooth design - no sharp edges.Easy to relocate and extend.
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
