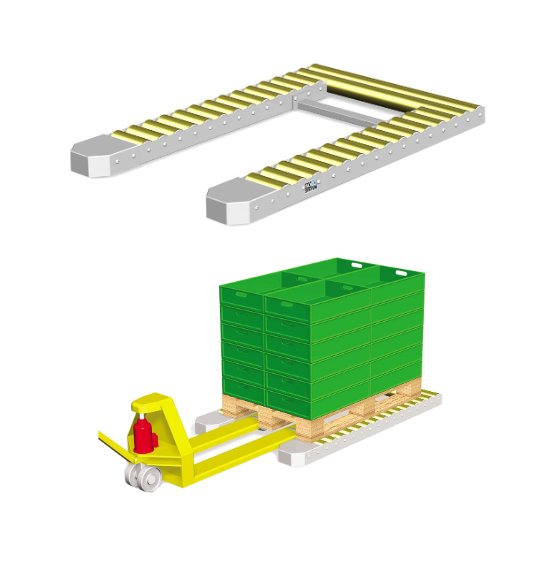

SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor
SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor
SKU:PAC-65441a
Optimize pallet handling with the SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor. Durable, efficient, and safe for heavy-duty loads.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor
$2,599.99
Quantity: 1
Claim Your Seller Account
SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance efficiency with the SOCO 1170mm x 1500mm Non-Driven Pallet Roller Conveyor. Featuring electro galvanized steel construction, 80mm rollers, and a 1,500 kg load capacity, this conveyor ensures seamless pallet movement. The chain drive system with hardened steel sprockets promotes durability and reliability. With a 89mm roller pitch and 90mm total height, this conveyor is designed to meet the rigorous demands of industrial and institutional settings.
Product Specifications
Dimensions Length
1500 mm
Dimensions Width
1170 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
