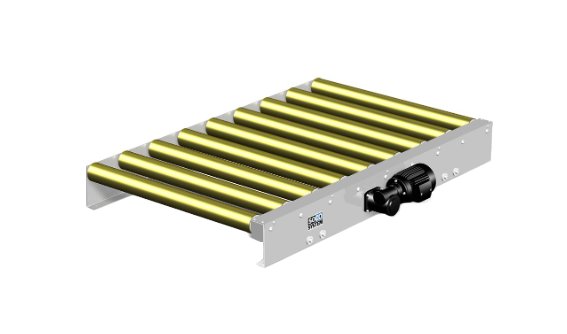

SOCO 1170mm x 1500mm Pallet Roller Conveyor with Gear Motor

Name: SOCO 1170mm x 1500mm Pallet Roller Conveyor with Gear Motor
Brand: TPC Packaging Solutions
SKU: PAC-b52bfa
Price: 2599.99 USD
Availability: OutOfStock

SKU:PAC-b52bfa

Maximize efficiency with the SOCO 1170mm x 1500mm Pallet Roller Conveyor. Heavy-duty, silent operation, and high payload capacity.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your material handling efficiency with the SOCO 1170mm x 1500mm Pallet Roller Conveyor with Side-Mounted Gear Motor. Designed for heavy-duty applications, this conveyor features electro-galvanized steel construction, 89mm roller pitch, and a 0.37kW gear motor for smooth operations at 11.4m/min. With a payload capacity of up to 1500kg per pallet, coupled with silent operation and minimal friction, this conveyor ensures seamless flow and reliability. The included accessories like cross bars and supports offer flexibility in installation and integration, making it a versatile solution for packaging and logistics operations.

Product Specifications

Accessories Accessories

Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting

Dimensions Length

1500 mm

Dimensions Width

1170 mm

Features Features

All sections are supplied with coupling fittings.Silent - minimal friction.Smooth design - no sharp edges.Easy to relocate and extend.

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

190 mm

SOCO 1170mm x 1500mm Pallet Roller Conveyor with Gear Motor
