SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
SKU:PAC-006611
Efficiently handle pallets with the SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor. Supports up to 1,500 kg load per pallet. Contact for customization.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
$2,499.99
Quantity: 1
Claim Your Seller Account
SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

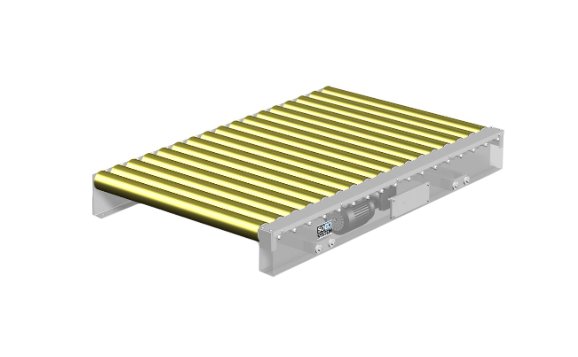

The SOCO 1170mm x 2000mm Driven Pallet Roller Conveyor with Sub-Mounted Gear Motor is a robust solution designed for efficient pallet handling. Featuring electro-galvanized steel construction, this conveyor can handle up to 1,500 kg load per pallet and motor unit. With a chain drive system integrated with durable bearings and a 0.37 kW gear motor, it ensures smooth and reliable operation at a speed of 11.4 m/min. The 178mm roller pitch and cold-bend angle profiles further enhance stability and durability, making it suitable for various industrial applications. Contact SOCO SYSTEM for customizable options to meet your specific needs.
Product Specifications
Dimensions Length
2000 mm
Dimensions Width
1170 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Minimum Height
255 mm
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
