SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor

Name: SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-ca183a
Price: 1299.99 USD
Availability: OutOfStock

SKU:PAC-ca183a

Efficient and durable non-driven pallet roller conveyor for secure packaging applications.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

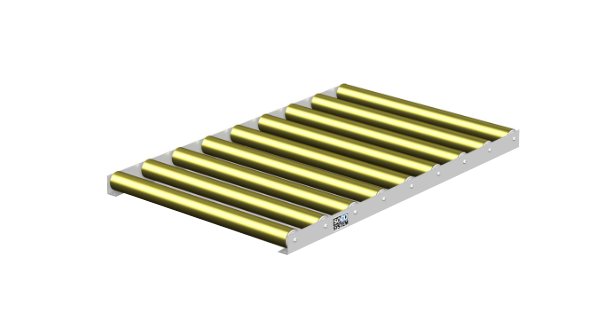

The SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor is designed for efficient pallet handling. Featuring an electro-galvanized steel frame with sturdy rollers suspended by durable axles, this conveyor can handle up to 1,500 kg per pallet with ease. The cold-bend angle profiles and bolted C-profile cross bars ensure stability and reliability. Ideal for packaging applications, this conveyor guarantees smooth conveying at a standard height of 90mm. Safety is paramount with required fencing for personnel security.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm

SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
