SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
SKU:PAC-64902d
Efficient and durable SOCO pallet roller conveyor for up to 1,500 kg loads.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Claim Your Seller Account
SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

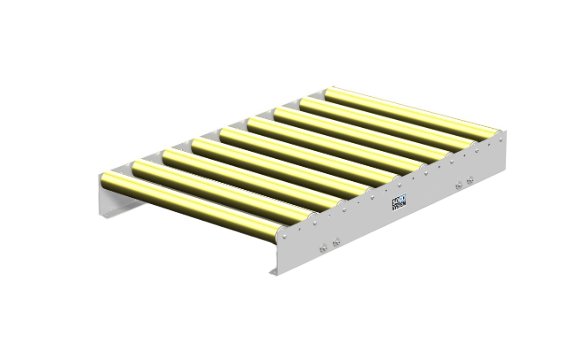

The SOCO 1370mm x 1500mm Non-Driven Pallet Roller Conveyor is designed for efficient pallet handling in both industrial and institutional settings. Featuring a durable construction with electro galvanized steel rollers and frames, this conveyor can support up to 1,500 kg per pallet. The 89mm roller pitch ensures smooth movement, while the cold-bend angle profiles provide sturdy support. Suitable for floor mounting, this conveyor is compatible with various accessories for enhanced functionality. Ensure personnel security with appropriate fencing as per standards.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
1500 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
