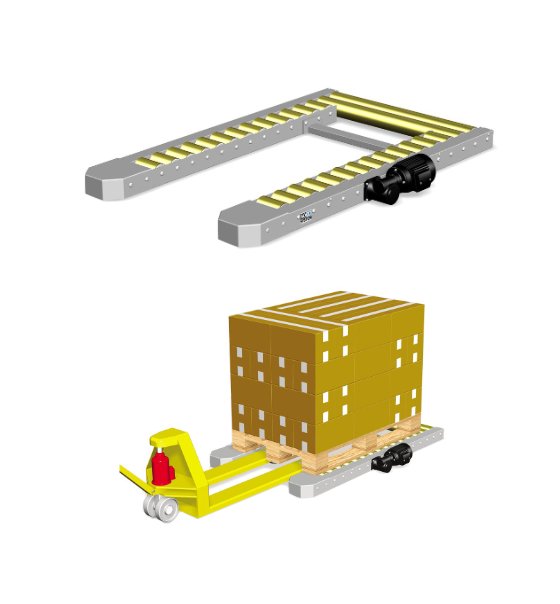

SOCO 1370mm x 1500mm Right Side Driven Pallet Roller Conveyor

Name: SOCO 1370mm x 1500mm Right Side Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-a59e93
Price: 2499.99 USD
Availability: OutOfStock

SKU:PAC-a59e93

Efficiently couple driven conveyors with SOCO's 1370mm x 1500mm Pallet Roller Conveyor. Robust design for up to 1,500 kg loads

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 1370mm x 1500mm Right Side Driven 2-Part Pallet Roller Conveyor is designed for efficient coupling of driven conveyors. With a robust construction including electro galvanized steel components, 80mm rollers, and a 0.37 kW gear motor, this conveyor can handle up to 1,500 kg loads per pallet. It features a chain drive system with 1/2" sprockets for smooth operation at 11.4 m/min speed. The 89mm roller pitch, cold-bend angle profiles, and M10 axle suspension ensure reliable pallet handling. Ideal for both consumer and institutional needs, this conveyor is versatile and built to last. Contact SOCO SYSTEM for further customization options.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Motor Mounted

Right Side

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
