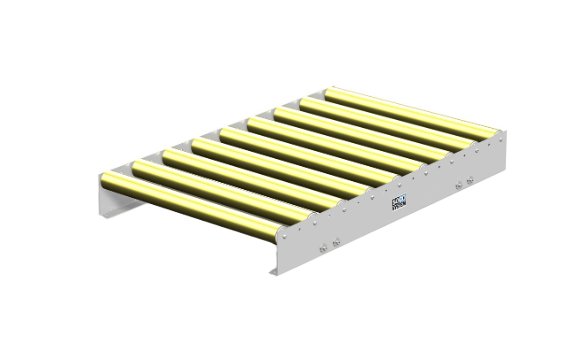

SOCO 1370mm x 2000mm Non-Driven Pallet Roller Conveyor

Name: SOCO 1370mm x 2000mm Non-Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-56604c
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-56604c

Efficiently move heavy pallets with the SOCO 1370mm x 2000mm Non-Driven Roller Conveyor. Durable, reliable, and compliant, for secure pallet handling.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 1370mm x 2000mm Non-Driven Pallet Roller Conveyor is a robust solution for efficiently moving palletized loads of up to 1,500 kg per pallet. Featuring an electro galvanized steel construction, 178mm roller pitch, and durable 80mm conveying rollers, this conveyor ensures smooth and reliable pallet handling. With cold-bend angle profiles bolted to C-profile cross bars, M10 axle suspension for rollers, and included supports for external or internal mounting, this conveyor offers flexibility and stability in warehouse or industrial settings. Complying with industry standards and designed for ease of use, the SOCO system guarantees efficient material handling performance.

Product Specifications

Accessories Accessories

Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting

Dimensions Length

2000 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Standard Total Height From Floor To Top Of Roller

190 mm
