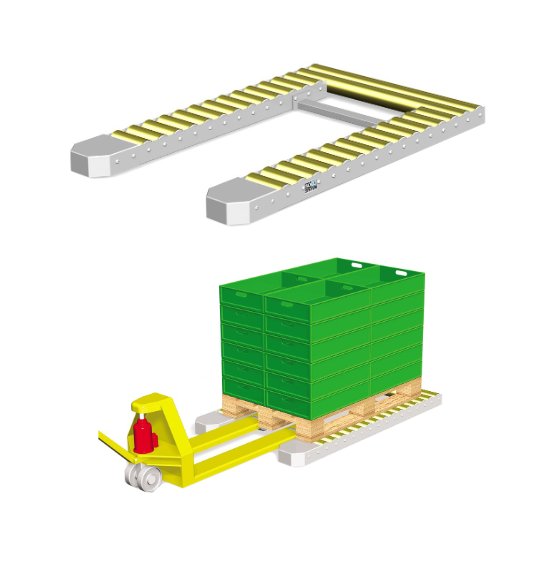

SOCO 1370x1500 mm Non-Driven 2-Part Pallet Roller Conveyor

Name: SOCO 1370x1500 mm Non-Driven 2-Part Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-dff9c0
Price: 1899.99 USD
Availability: OutOfStock

SKU:PAC-dff9c0

Reliable SOCO 1370x1500 mm Pallet Roller Conveyor with electro galvanized components, 80 mm rollers, and 1,500 kg payload capacity. Ideal for secure pallet handling.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 1370x1500 mm Non-Driven 2-Part Pallet Roller Conveyor is designed with precision and durability in mind. Featuring electro galvanized steel components, 80 mm conveying rollers, and a maximum payload capacity of 1,500 kg per pallet unit, this conveyor ensures seamless movement of pallets with efficiency and safety. With a roller pitch of 89 mm and a chain-driven mechanism, this conveyor is ideal for packaging operations requiring secure and efficient pallet handling. Compliant with industry standards, it offers reliability and performance for both consumer and institutional buyers.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
