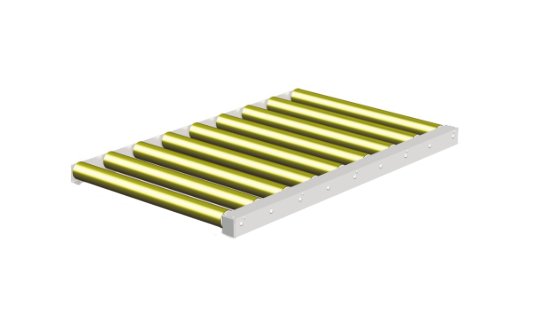

SOCO 1370x2000 mm Roller Pitch 90 mm Height Driven Pallet Conveyor
SOCO 1370x2000 mm Roller Pitch 90 mm Height Driven Pallet Conveyor
SKU:PAC-ea6671
Efficient and durable 1370x2000 mm pallet conveyor with 90 mm roller pitch, suitable for loads up to 1,500 kg.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
SOCO 1370x2000 mm Roller Pitch 90 mm Height Driven Pallet Conveyor
$2,399.99
Quantity: 1
Claim Your Seller Account
SOCO 1370x2000 mm Roller Pitch 90 mm Height Driven Pallet Conveyor
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOCO 1370x2000 mm Roller Pitch 90 mm Height Driven Pallet Conveyor is a robust solution ideal for both consumer and institutional needs. With a payload capacity of up to 1,500 kg per pallet and motor unit, it excels in efficient handling. Constructed with electro galvanized steel components, cold-bend angle profiles, and 80 mm conveying rollers, this conveyor ensures durability and smooth operation. The chain drive system, integrated with hardened steel sprockets, provides reliable performance, while the chain cover offers protection and easy access to pallets. Whether for packaging facilities or government procurement, this conveyor delivers reliability and performance.
Product Specifications
Dimensions Length
2000 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
