Enhanced SOCO 200mm x 3500mm Belt Conveyor with Booster for precise material handling needs in diverse environments.

$1,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

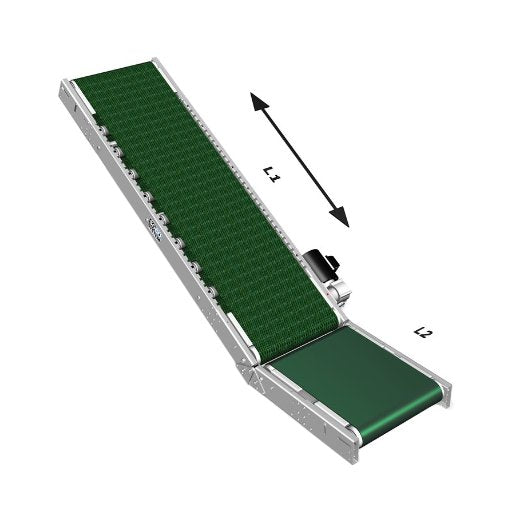

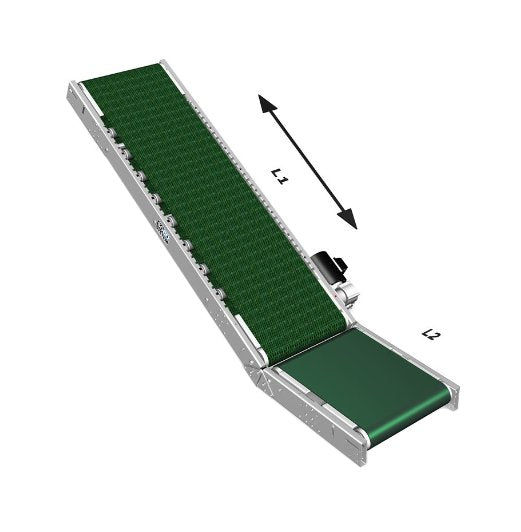

The SOCO 200mm x 3500mm Belt Conveyor with Booster is engineered for gentle transport, whether moving up or down. This innovative conveyor system, featuring electro-galvanized steel frames and a standard conveying gear operating at 10 m/min, offers seamless integration of inclined and horizontal conveyors tailored to specific requirements. The booster, equipped with a smooth belt, works harmoniously with the grip belt on the conveyor, ensuring efficient and reliable material handling. Additional options include various belt types, bedding configurations, and accessories such as supports for enhanced functionality. With a focus on modularity and performance, this conveyor system is ideal for applications requiring wide transfer angles.

Product Specifications

Accessories Accessories

Supports for Belt Conveyors and Driven Roller Conveyors

Additional Information Additional Information

BeltAs standard, the booster is fitted with a smooth belt and the conveyor with a grip belt. 0.5 m long boosters wider than 400 mm are always delivered with belts with guide profile.Contact our sales department regarding food belts and other belt types.BeddingAs standard, 0.5 m long and 400 mm wide boosters are supplied with grooved plate bedding. Conveyors and boosters of 1 m are supplied with roller bedding.Contact our sales department if another bedding is required.OrderingChoose a booster of the desired width and length (the booster is the horizontal conveyor).Then choose the length of the incline conveyor. The item number is stated under the booster.Then choose the belt.Ideal for wide transfer angles.

Dimensions Booster Length L2

1.0 m

Dimensions Conveyor Length L1

3500 mm

Dimensions Width

200 mm

Note Note

A minimum of three supports is required for a conveyor with booster.As standard, the motor is fitted on the left side of the booster. For mounting on the other side, please specify this upon ordering.Subject to alteration.

Specifications Frames

Electro-Galvanized Steel

Specifications Standard Conveying Gear 401

10 m/min

SOCO 200mm x 3500mm Belt Conveyor with Booster
