SOCO 400mm Width Conveyor Type 2 Controller

Name: SOCO 400mm Width Conveyor Type 2 Controller
Brand: TPC Packaging Solutions
SKU: PAC-62514b
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-62514b

Enhance automated feed-in control with the SOCO 400mm Width Conveyor Type 2 Controller, featuring dual-speed conveyors and precision engineering for efficient separation and handling of articles.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

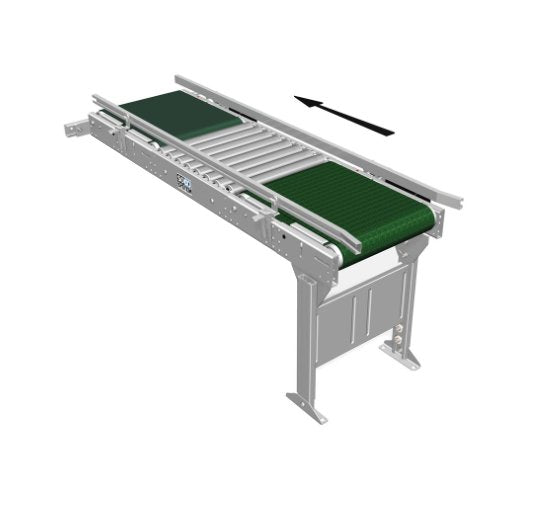

The SOCO 400mm Width Conveyor Type 2 Controller is a precision-engineered system designed for automatic feed-in control before case sealers or in applications requiring article separation. This controller consists of two conveyors running at different speeds, with the inlet featuring a 10 m/min conveyor followed by a 0.5 m roller conveyor, and the outlet equipped with a 20 m/min conveyor. Constructed with electro-galvanized steel frames, this controller offers precise control and acceleration of items between belts, ensuring efficient handling. Standard features include grip belt at the inlet, smooth belt at the outlet, guide profiles on both belts' undersides, and grooved plate bedding, all aimed at enhancing operations and throughput.

Product Specifications

Additional Information Additional Information

Acceleration of the items on belt 2 in relation to belt 1 is provided.As standard, the controller is supplied with grip belt at inlet and smooth belt at outlet. Both belts feature guide profile on the underside. Grooved plate bedding.

Dimensions Length

1500 mm

Dimensions Width

400 mm

Note Note

Subject to alteration.

Specifications Frames

Electro-Galvanized Steel

Specifications Standard Conveying Gear 401

10 m/min
