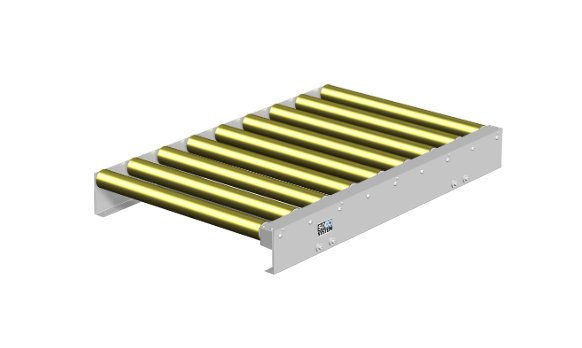

The SOCO 970mm Width Coupled Sections Driven Pallet Conveyor is a robust solution designed for seamless pallet handling. Featuring cold-bend angle profiles, electro galvanized steel rollers, and durable axle bearings, this conveyor ensures efficient and reliable performance. With a maximum load capacity of 1,500 kg per pallet, chain drive technology, and a protective chain cover, this conveyor guarantees smooth operation and long-term durability. Suitable for both floor and support mounting, this conveyor is a versatile and essential addition to any packaging facility.
Product Specifications
Dimensions Length
250 mm
Dimensions Width
970 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
