SOCO 970mm Width Non-Driven Pallet Roller Conveyor
SOCO 970mm Width Non-Driven Pallet Roller Conveyor
SKU:PAC-369f35
Reliable SOCO 970mm Width Non-Driven Pallet Roller Conveyor for heavy-duty pallet handling. Sturdy construction and smooth operation.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SOCO 970mm Width Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Claim Your Seller Account
SOCO 970mm Width Non-Driven Pallet Roller Conveyor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

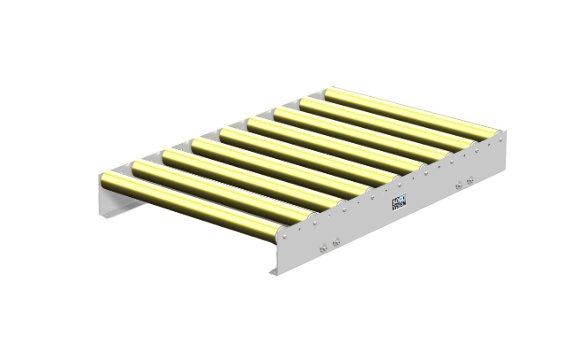

The SOCO 970mm Width Non-Driven Pallet Roller Conveyor is a robust solution designed for efficient pallet handling. With a sturdy electro-galvanized steel frame and 80mm conveying rollers suspended between side frames, this conveyor ensures smooth and reliable operation. It can support up to 1,500 kg per pallet and motor unit, making it ideal for heavy-duty applications. The Cold-bend angle profiles bolted to C-profile cross bars provide added stability, while the included accessories like Cross Bars and Supports offer flexible installation options. Ensure compliance with safety standards by incorporating appropriate fencing for personnel security.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
2000 mm
Dimensions Width
970 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
