SOCO 970mm Width Pallet Conveyor
SOCO 970mm Width Pallet Conveyor
SKU:PAC-2618fe
Efficient SOCO 970mm Width Pallet Conveyor for seamless material handling. Durable construction, suitable for loads up to 1,500kg.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
SOCO 970mm Width Pallet Conveyor
$2,399.99
Quantity: 1
Claim Your Seller Account
SOCO 970mm Width Pallet Conveyor
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

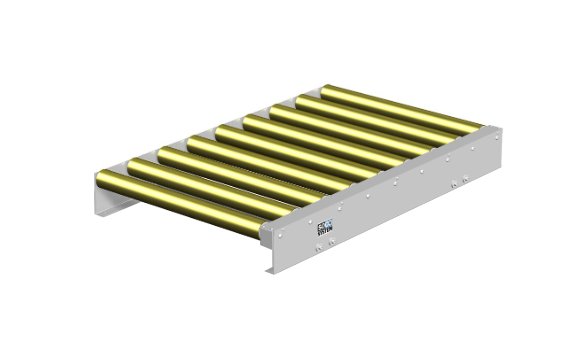

The SOCO 970mm Width Coupled Sections Driven Pallet Conveyor is an indispensable solution for efficient material handling in packaging operations. Featuring a robust construction of cold-bend angle profiles bolted to C-profile cross bars, this conveyor system ensures durability and reliability. The electro galvanized steel rollers, with a diameter of 80mm and 89mm pitch, provide a smooth conveying surface for pallets weighing up to 1,500kg. The chain drive system, integrated with hardened steel sprockets for enhanced performance, operates seamlessly beneath the roller surface. With a standard height of 90mm from the floor to the top of rollers, this conveyor offers a versatile and adaptable solution for various operational requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Length
1000 mm
Dimensions Width
970 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
