SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor
SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor
SKU:PAC-9b1e6f
Durable and efficient SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor for secure pallet handling.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor
$1,599.99
Quantity: 1
Claim Your Seller Account
SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

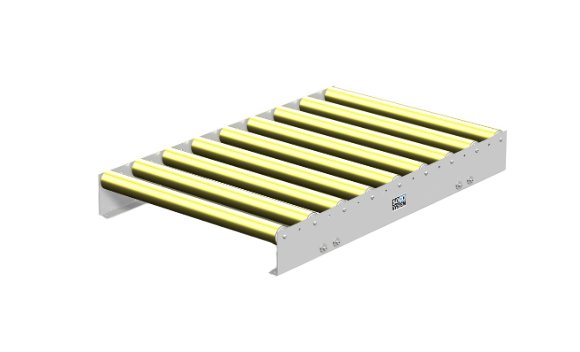

The SOCO 970mm x 1000mm Non-Driven Pallet Roller Conveyor is a robust solution for pallet handling, featuring electro galvanized steel construction for durability and strength. With a conveying rollers diameter of 80mm and a payload capacity of up to 1,500kg per pallet, this conveyor ensures efficient and secure transport. The cold-bend angle profiles bolted to C-profile cross bars with supports provide stability and reliability. Suitable for various applications, this conveyor meets the highest industry standards, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
1000 mm
Dimensions Width
970 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
