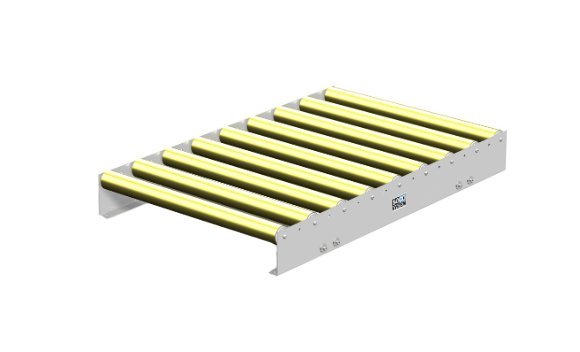

SOCO 970mm x 1500mm Non-Driven Pallet Roller Conveyor

Name: SOCO 970mm x 1500mm Non-Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-b7d3dc
Price: 1899.99 USD
Availability: OutOfStock

SKU:PAC-b7d3dc

Boost warehouse productivity with the SOCO 970x1500mm Pallet Roller Conveyor.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your warehouse efficiency with the SOCO 970mm x 1500mm Non-Driven Pallet Roller Conveyor. This conveyor features a robust construction with electro galvanized steel tubes and rollers, capable of handling up to 1,500kg load per pallet. With a roller pitch of 89mm and durable axle bearings, this conveyor ensures smooth and reliable pallet movement. The cold-bend angle profiles bolted to C-profile cross bars provide stability, making it ideal for packaging and logistics operations. Compliant with industry standards, this conveyor offers efficiency without sacrificing safety.

Product Specifications

Accessories Accessories

Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting

Dimensions Length

1500 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

190 mm

SOCO 970mm x 1500mm Non-Driven Pallet Roller Conveyor
