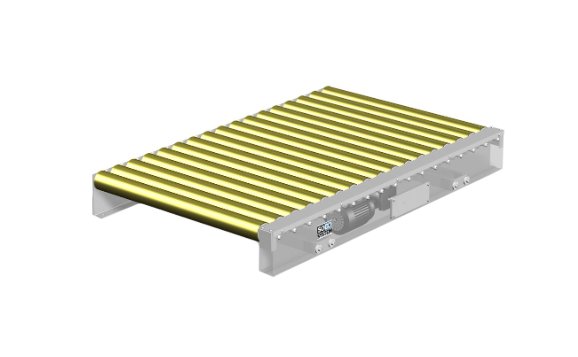

SOCO 970mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor

Name: SOCO 970mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
Brand: TPC Packaging Solutions
SKU: PAC-f21421
Price: 2950.0 USD
Availability: OutOfStock

SKU:PAC-f21421

Efficient SOCO 970mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor for up to 1,500 kg loads, 11.4 m/min speed.

$2,950.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 970mm x 2000mm Driven Pallet Roller Conveyor is designed for efficient pallet handling, with a payload capacity of up to 1,500 kg per pallet and motor unit. Constructed with electro-galvanized steel components for durability, this conveyor features 80mm conveying rollers suspended between side frames, ensuring smooth operation at a speed of 11.4 m/min. The integration of a 0.37 kW gear motor and chain drive system enhances performance, making it suitable for various industrial applications. With a 89mm roller pitch and a standard height of 190mm, this conveyor is a reliable solution for packaging facilities and warehouses.

Product Specifications

Dimensions Length

2000 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Minimum Height

255 mm

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

190 mm

SOCO 970mm x 2000mm Driven Pallet Roller Conveyor with Gear Motor
