SOCO 970mm x 2000mm Pallet Conveyor

Name: SOCO 970mm x 2000mm Pallet Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-a8ec60
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-a8ec60

Enhance pallet handling with the SOCO 970mm x 2000mm Pallet Conveyor. Durable construction, high load capacity, and efficient chain drive system.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

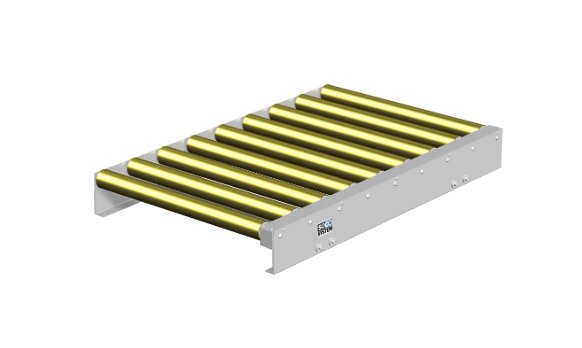

The SOCO 970mm x 2000mm Coupled Sections Driven Pallet Roller Conveyor is a robust solution designed for pallet handling up to 1,500kg. Featuring a durable electro galvanized steel construction, this conveyor ensures reliable performance with its 89mm roller pitch and 190mm height. The chain drive system with hardened steel sprockets and U-profile chain cover enhances operational safety and efficiency. Ideal for packaging facilities and logistic centers, this conveyor offers seamless integration and support for various pallet sizes, meeting stringent industrial standards.

Product Specifications

Dimensions Length

2000 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
