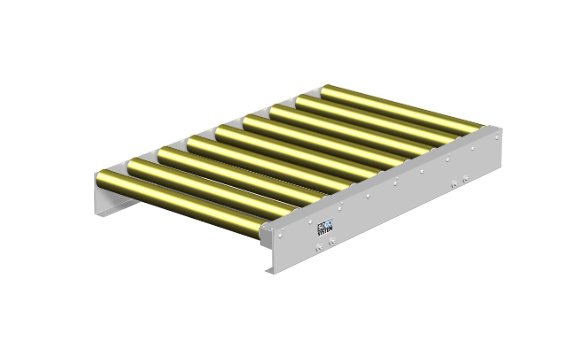

SOCO 970mm x 500mm Pallet Roller Conveyor

Name: SOCO 970mm x 500mm Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-b34dcb
Price: 1899.99 USD
Availability: OutOfStock

SKU:PAC-b34dcb

Efficient SOCO 970mm x 500mm Pallet Roller Conveyor for heavy-duty pallet handling with durable construction and smooth chain drive operation.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 970mm x 500mm Pallet Roller Conveyor is a versatile and sturdy conveyor system designed for efficient pallet handling. Featuring electro galvanized steel construction with robust components such as 80mm conveying rollers and 17mm axles, it ensures durability and reliability. With a payload capacity of up to 1,500kg per pallet, this conveyor is ideal for heavy-duty industrial applications. The chain drive system integrated with hardened steel sprockets guarantees smooth operation, while the protective chain cover enhances safety and accessibility. Suitable for both support or floor mounting, this conveyor system is a reliable solution for packaging and logistics operations.

Product Specifications

Dimensions Length

500 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
