SOCO 970mm x 500mm Roller Pitch Pallet Roller Conveyor

Name: SOCO 970mm x 500mm Roller Pitch Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-b1bb78
Price: 1999.99 USD
Availability: OutOfStock

SKU:PAC-b1bb78

Reliable SOCO 970mm x 500mm Pallet Roller Conveyor for efficient pallet handling with 1500 kg payload, 0.37 kW gear motor, and 11.4 m/min speed.

$1,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

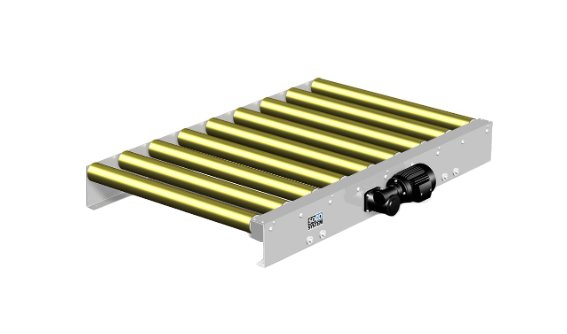

The SOCO 970mm x 500mm Roller Pitch Pallet Roller Conveyor with Side-Mounted Gear Motor is designed for efficient pallet handling. With a robust construction and a maximum payload of 1500 kg, it ensures reliable performance. The electro galvanized steel frame, 80mm conveying rollers, and 0.37 kW gear motor deliver a smooth and silent operation. Featuring 89mm roller pitch and 190mm total height, this conveyor is easily extendable and relocatable. Coupling fittings, sturdy chains with chain covers, and M10 axle-mounted rollers enhance safety and functionality. Suitable for various pallet shapes and sizes, it offers a speed of 11.4 m/min for seamless operations.

Product Specifications

Accessories Accessories

Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting

Dimensions Length

500 mm

Dimensions Width

970 mm

Features Features

All sections are supplied with coupling fittings.Silent - minimal friction.Smooth design - no sharp edges.Easy to relocate and extend.

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

190 mm

SOCO 970mm x 500mm Roller Pitch Pallet Roller Conveyor
