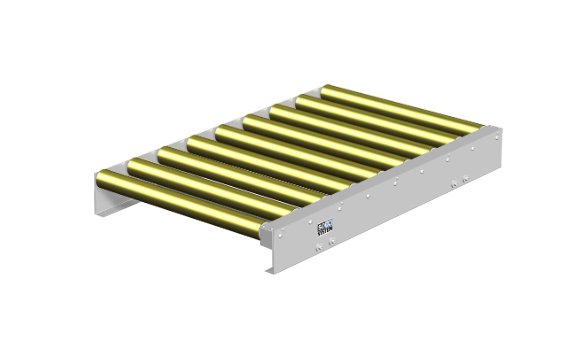

SOCO 970mm x 750mm Pallet Roller Conveyor

Name: SOCO 970mm x 750mm Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-abc1fd
Price: 2399.99 USD
Availability: OutOfStock

SKU:PAC-abc1fd

Enhance logistics with the SOCO 970mm x 750mm Pallet Roller Conveyor. Supports up to 1,500kg loads per pallet with durable construction and efficient chain drive system.

$2,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your logistics with the SOCO 970mm x 750mm Pallet Roller Conveyor. Designed for up to 1,500kg loads per pallet, this conveyor features electro galvanized steel construction, 80mm conveying rollers, and a reliable chain drive system with U-profile chain cover for added safety. The 89mm roller pitch ensures smooth transport while the cold-bend angle profiles provide sturdy support. Ideal for packaging facilities and warehouses, this conveyor meets stringent industry standards.

Product Specifications

Dimensions Length

750 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
