SOCO PalManager GM5 Electric Pallet Magazine
SOCO PalManager GM5 Electric Pallet Magazine
SKU:PAC-8ac90d
Efficient electric pallet magazine for automated stacking/unstacking of 1-5 pallets, with 1323 lb lifting capacity and user-friendly control system.
Regular price
$4,355.99
Regular price
Sale price
$4,355.99
Unit price
per
Initiate Order
SOCO PalManager GM5 Electric Pallet Magazine
$4,355.99
Quantity: 1
Claim Your Seller Account
SOCO PalManager GM5 Electric Pallet Magazine
$4,355.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

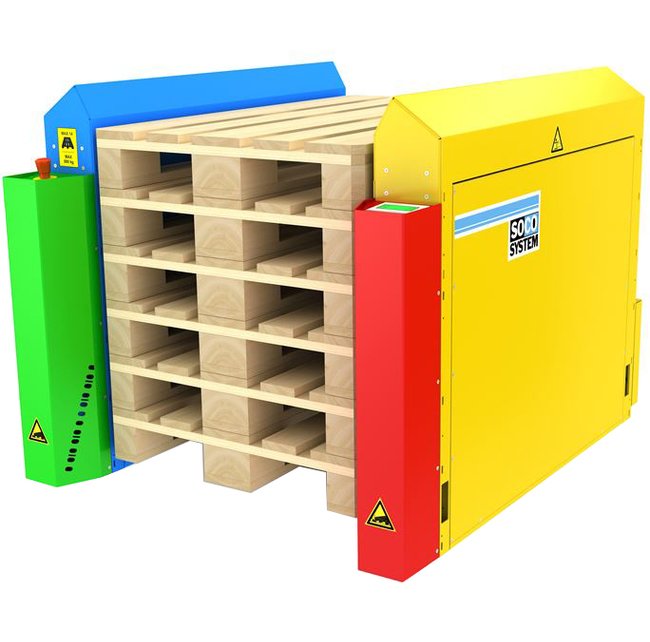

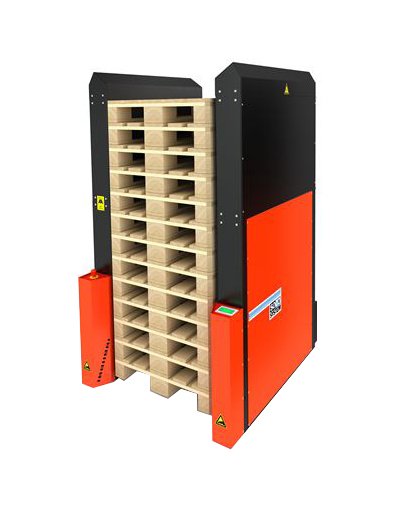

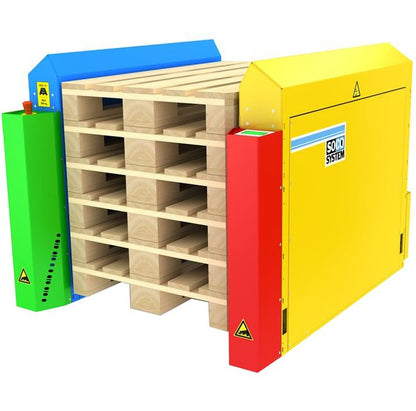

The SOCO PalManager GM5 Electric Pallet Magazine is a highly efficient solution for stacking up to 16 pallets or serving as a pallet magazine. This electric pallet magazine can automatically stack or unstack 1-5 pallets at a time, reducing manual labor and increasing operational productivity. With a maximum lifting capacity of 1323 lb, powder-coated or electro-galvanized surface treatment, and a user-friendly control system, this machine ensures safe, noise-free, and dust-free pallet handling. Ideal for both storage and production environments, the PalManager GM5 streamlines operations while prioritizing worker safety and operational efficiency.
Product Specifications
Accessories Accessories

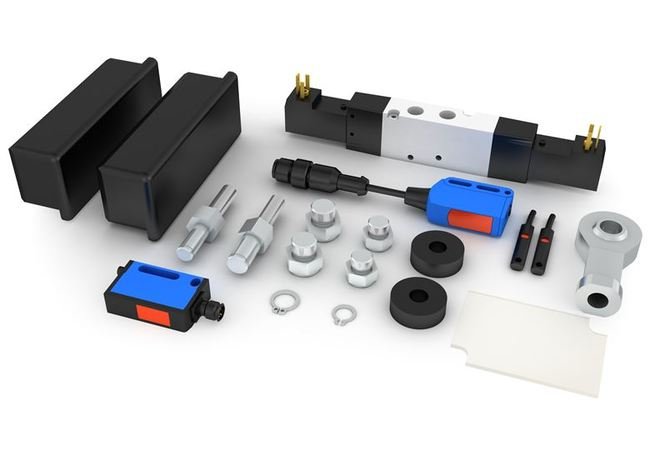

Alarms for Level of Pallets | Alternative RAL Color for Pallet Magazines | Spare Parts Kit for Pallet Magazines
Dimensions Height
84-5/8 in
Dimensions Length
55-1/8 in
Dimensions Width
47-1/4 in
Features Features

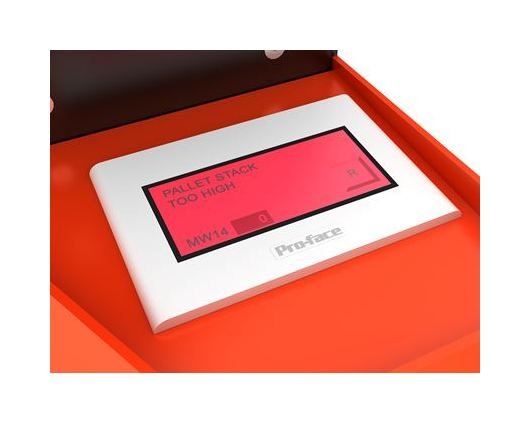

The pallet magazine is electric and does not require any air connection.Control system and operationThe PalManager GM5 is equipped with a unique and user-friendly control system that ensures high productivity at lowest possible costs. The pallet magazine is easy to operate and to set for the functions required.Safe pallet handling - fewer work-related injuries.Increases productivity - always a pallet ready for use.Gentle pallet handling.No noise or dust inconvenience.Provides order both in storage and production.
Note Note
Air pressure and consumption: Not required.Subject to alteration.
Pallet Size Pallet Length
47-1/4 in
Pallet Size Pallet Width
31-1/2 in
Specifications Color
Red RAL 2002, black RAL 9005 (available in other colors at a surcharge).
Specifications Current
3 A
Specifications Maximum Lifting Capacity
1323 lb
Specifications Maximum Number Of Pallets
16
Specifications Note For Power Supply
Other specifications available.
Specifications Surface Treatment
All parts are powder-coated or electro-galvanized. The machine is also available in stainless steel.
Specifications Voltage
3 x 400 V
