SOCO PalManager Multi Pallet Magazine
SOCO PalManager Multi Pallet Magazine
SKU:PAC-7e1448
Enhance productivity and safety with the SOCO PalManager Multi Pallet Magazine, ideal for stacking and collecting up to 14 pallets efficiently.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
SOCO PalManager Multi Pallet Magazine
$2,999.99
Quantity: 1
Claim Your Seller Account
SOCO PalManager Multi Pallet Magazine
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

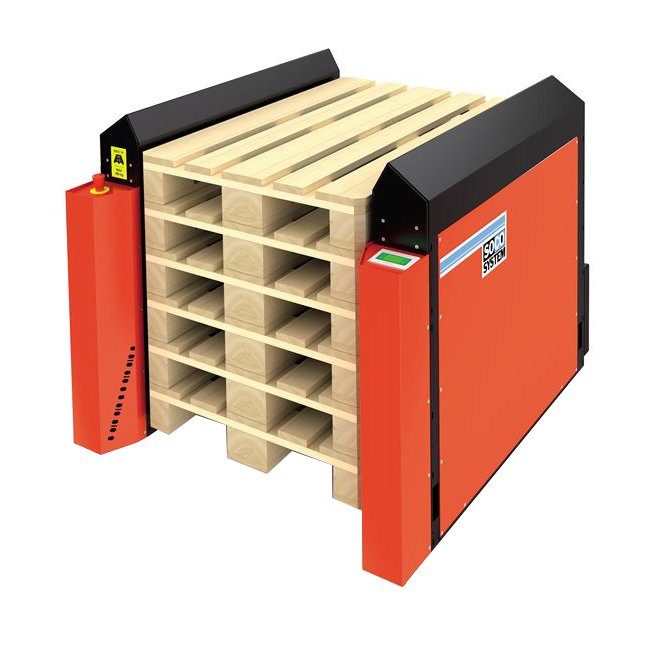

The SOCO PalManager Multi Pallet Magazine is a versatile stacking solution capable of handling up to 14 pallets. Designed for seamless pallet collection, it ensures efficient pallet management and safe handling. With features such as automatic operation, gentle pallet handling, and built-in safety mechanisms like photocell monitoring, this magazine enhances productivity while maintaining a clean and organized workspace. Constructed with durable materials and available in different colors, including stainless steel, it offers reliability and longevity for industrial applications.
Product Specifications
Accessories Accessories
Alarms for Level of Pallets | Alternative RAL Color for Pallet Magazines | Spare Parts Kit for Pallet Magazines
Dimensions Height
41-3/8 in
Dimensions Length
54-3/8 in
Dimensions Width
Variable
Features Features

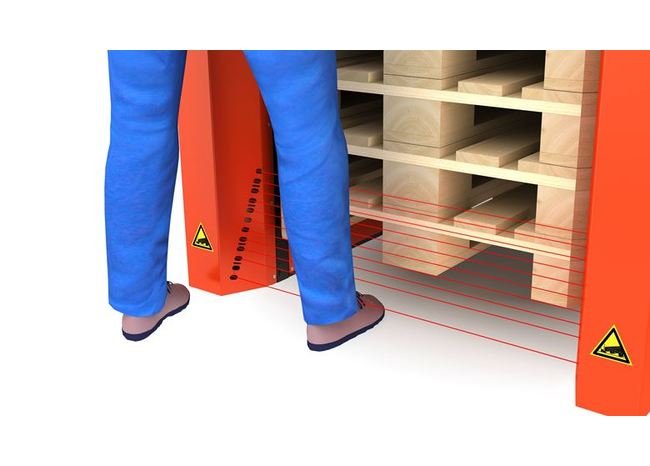

The pallet magazine can be set for automatic operation.Safe pallet handling - fewer work-related injuries.Increases productivity - always a pallet ready for use.Gentle pallet handling.No noise or dust inconvenience.Provides order both in storage and production.PalManager Multi is available in pneumatic or electrical versions.Photocells monitor the work area of the pallet magazine and send a signal to stop the magazine if a pallet has not been fully stacked/ unstacked or if, for instance, a foot enters the working area.
Note Note
Subject to alteration.
Pallet Size Pallet Length
47-1/4 in
Pallet Size Pallet Width
31-1/2 to 47-1/4 in
Power Supply Voltage
1 x 230 V
Specifications Air Consumption
28.8 L/cycle
Specifications Air Pressure
6 to 10 bar
Specifications Color

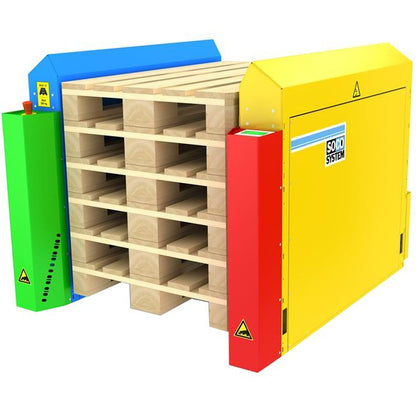

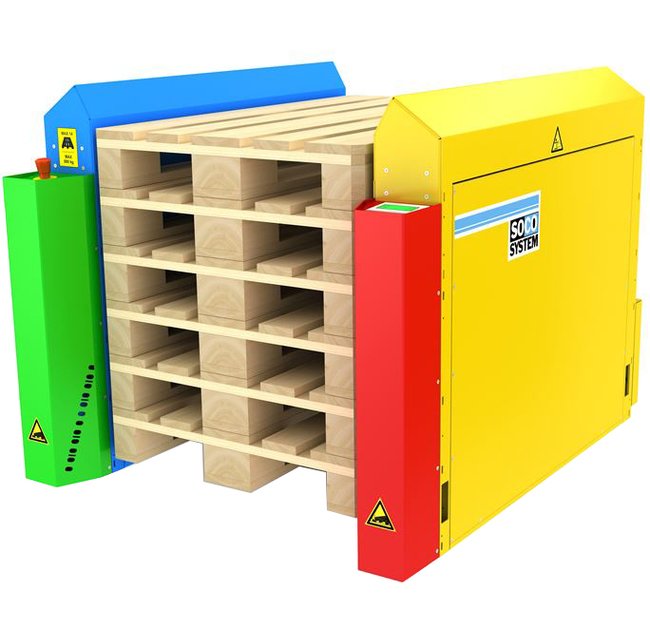

Red RAL 2002, black RAL 9005 (available in other colors at a surcharge).
Specifications Maximum Lifting Capacity
1102 lb
Specifications Maximum Number Of Pallets
14
Specifications Surface Treatment
All parts are powder-coated or electro-galvanized. The machine is also available in stainless steel.
