SOCO PRD Double Palletizing Robots
SOCO PRD Double Palletizing Robots
SKU:PAC-8967de
Enhance packaging efficiency with SOCO PRD Double Palletizing Robots, featuring dual pallet positions and advanced automation for seamless operations.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
SOCO PRD Double Palletizing Robots
$25,999.00
Quantity: 1
Claim Your Seller Account
SOCO PRD Double Palletizing Robots
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

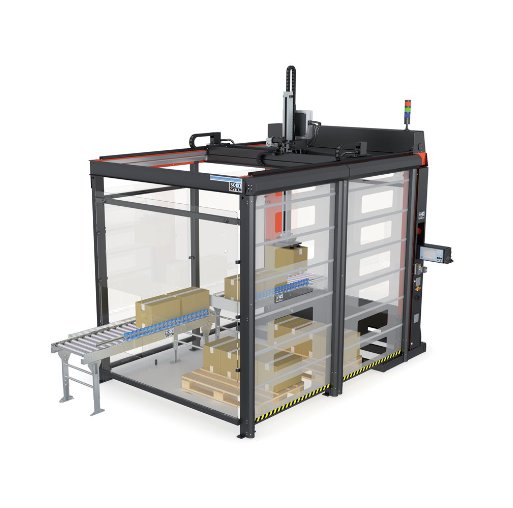

The SOCO PRD Double Palletizing Robots offer unmatched flexibility and efficiency for packaging processes. With two pallet positions, these robots excel in no-wait pallet changes, sorting multiple products, and handling double line operations. Equipped with vacuum, gripper, and lifting heads, built-in safety switches, servomotors, feed-in conveyor, and customized safety guarding programs, these robots ensure optimal performance and safety. Ideal for industries requiring advanced palletizing solutions.
Product Specifications
Accessories For Palletizing Robots Accessories For Palletizing R

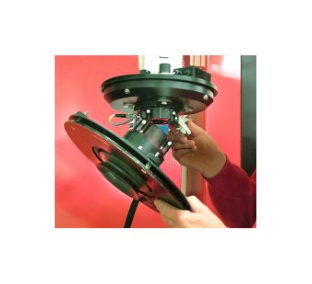

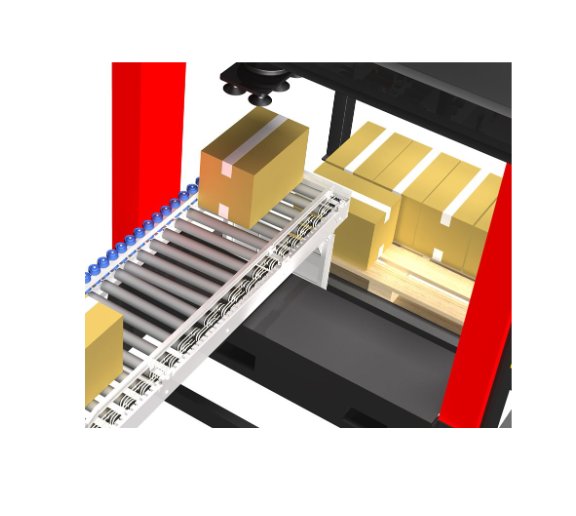

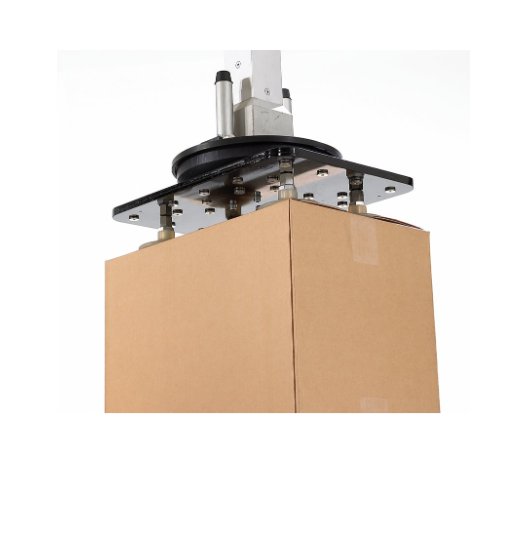

Vacuum, gripper, and lifting headsAs standard, the palletizing robot is equipped with a compact vacuum head made as a "sandwich" construction where the air runs inside the plate. By relying on this principle, the use of fragile tubes and fittings is avoided, and the unique "sandwich" construction makes it easy and inexpensive to tailor vacuum heads for individual requirements.In addition to the standard vacuum head, SOCO SYSTEM develops special gripper and lifting heads upon request to handle e.g. trays, crates, cans, etc.Built-in safety switchesAll robot heads are fitted with built in safety switches to protect against overload of the x-, y-, z-axes and of the turn movement.ServomotorsThe x-, y- and z-axes and the turn movement of the robot head are driven by servomotors. The servomotors work with extreme accuracy and have substantial lifting power even down to very low speeds.Feed-in conveyorThe robot can be supplied with a driven feed-in conveyor. The feed-in conveyor enables accumulation and separation of the in coming items.Customized safety guarding programAccording to international safety regulations, most palletizing robots must be fitted with safety guarding or other safety measures. A tailor-made and integrated security fence program is available for the robot including standard fence, standard doors, manual and automatic sliding doors, safety light barriers, and double safety circuits for multiple pallet positions.
Features Features

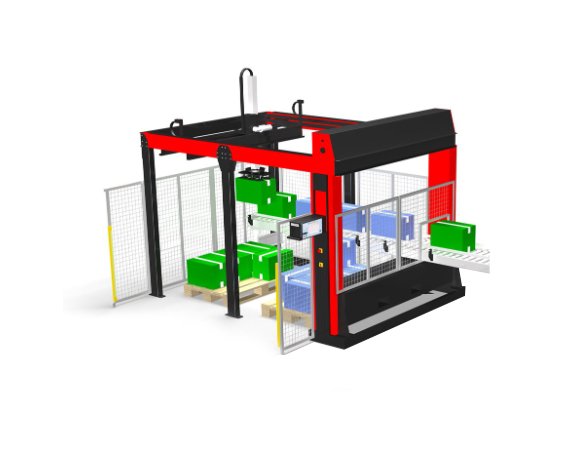

No waiting time during pallet changeThe modular robot can palletize the same product onto two pallets. When one pallet is full, the robot automatically starts to palletize on the second pallet, allowing plenty of time to remove the first full pallet and replace it with an empty pallet.Product sortingThe double robot can palletize two different products - one on each pallet. The two different products can arrive on the same infeed conveyor. Photocells or other sensor equipment will then tell the robot what product is to be palletized onto which pallet.Double line operationThe double robot can handle two different products that arrive to the robot on two separate infeed conveyors - one from each production line. The robot takes each product to its own pallet.
Specifications Model
PRD Double Palletizing Robot
