SOCO PRS Single Palletizing Robot
SOCO PRS Single Palletizing Robot
SKU:PAC-a07f36
Automate palletizing efficiently with the SOCO PRS Robot, featuring quick pallet pattern changes and robust safety features.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
SOCO PRS Single Palletizing Robot
$28,999.99
Quantity: 1
Claim Your Seller Account
SOCO PRS Single Palletizing Robot
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

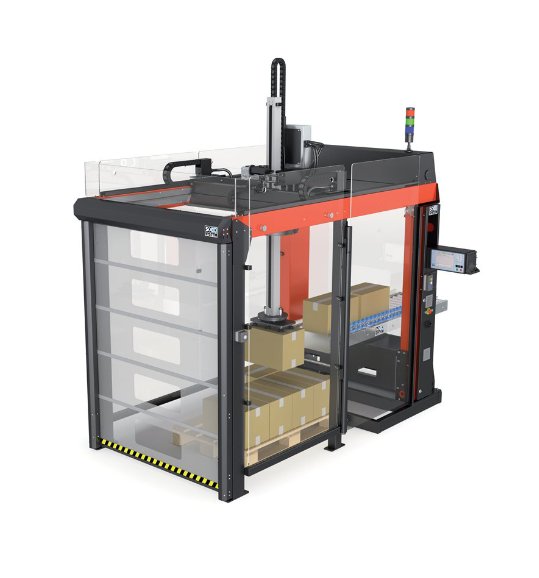

The SOCO PRS Single Palletizing Robot is a compact and efficient solution for automating palletizing tasks. With user-friendly software and the ability to generate new pallet patterns in seconds, this robot offers flexibility and ease of operation. Equipped with safety features such as CE-compliant fencing, stainless steel construction for wet environments, and high pallet capacity for optimal freight economy, this robot is designed for durability and performance. Additionally, it can be customized with accessories like a layer pad magazine for enhanced functionality.
Product Specifications
Accessories Accessories
Customized Safety Guarding Programme | Feed-in Conveyor | Vacuum, Gripper, and Lifting Heads
Accessories For Palletizing Robots Accessories For Palletizing R

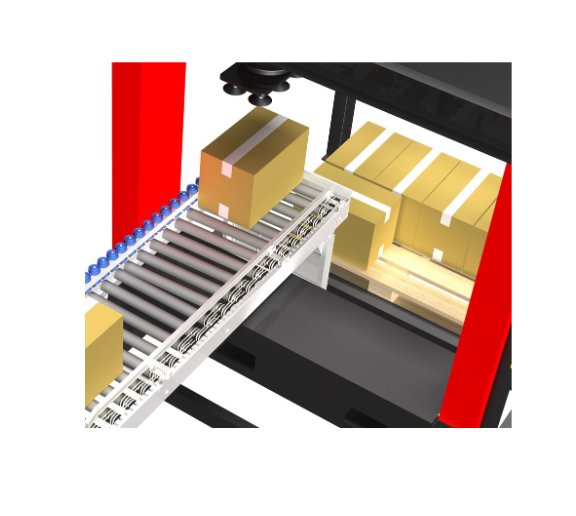

Vacuum, gripper, and lifting headsAs standard, the palletizing robot is equipped with a compact vacuum head made as a "sandwich" construction where the air runs inside the plate. By relying on this principle, the use of fragile tubes and fittings is avoided, and the unique "sandwich" construction makes it easy and inexpensive to tailor vacuum heads for individual requirements.In addition to the standard vacuum head, SOCO SYSTEM develops special gripper and lifting heads upon request to handle e.g. trays, crates, cans, etc.Built-in safety switchesAll robot heads are fitted with built in safety switches to protect against overload of the x-, y-, z-axes and of the turn movement.ServomotorsThe x-, y- and z-axes and the turn movement of the robot head are driven by servomotors. The servomotors work with extreme accuracy and have substantial lifting power even down to very low speeds.Feed-in conveyorThe robot can be supplied with a driven feed-in conveyor. The feed-in conveyor enables accumulation and separation of the in coming items.Customized safety guarding programAccording to international safety regulations, most palletizing robots must be fitted with safety guarding or other safety measures. A tailor-made and integrated security fence program is available for the robot including standard fence, standard doors, manual and automatic sliding doors, safety light barriers, and double safety circuits for multiple pallet positions.
Additional Information Additional Information

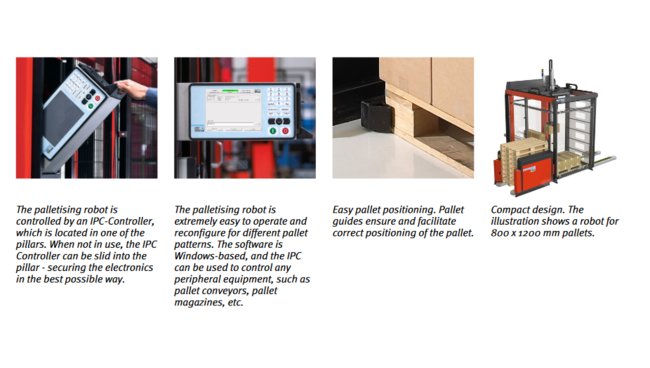

The palletizing robot is controlled by an IPC-Controller, which is located in one of the pillars. When not in use, the IPC Controller can be slid into the pillar - securing the electronics in the best possible way.The palletizing robot is extremely easy to operate and reconfigure for different pallet patterns. The software is Windows-based, and the IPC can be used to control any peripheral equipment, such as pallet conveyors, pallet magazines, etc.Easy pallet positioning. Pallet guides ensure and facilitate correct positioning of the pallet.Compact design. The illustration shows a robot for 800 x 1200 mm pallets.
Features Features
New pallet pattern in 30 secondsIf the pallet pattern is already in the IPC, it takes no more than 30 seconds to switch to another program.New pallet patterns generated using optimization software, such as CAPEPACK®, can be transferred online or via diskette.Safe to operate, simple and versatileThe machine requires minimal maintenance and is easy to access. It is equipped with safety fencing that meets CE requirements.Greater pallet capacity - Improved freight economyAll types of cases, even heavy and bulky ones, can be stacked at heights up to 2700 mm in order to fully utilize the capacity of lorries and containers.Stainless steel for wet environmentsThe robot can be supplied entirely or partially in stainless steel. The robot has powder coated finish in RAL 2002 and RAL 9005 colors as standard. Special colors are available for at a surcharge.Layer pad magazinePRS single robot can be extended with magazine for intermediate sheets.Ask for a configured robot solution.
Note Note
Subject to alteration.
Specifications Model
PRS Single Palletizing Robot
Specifications Pallet Size
800 x 1200 mm
