SOCO RIB 1214 Palletizing Robot - 1000 x 1200mm
SOCO RIB 1214 Palletizing Robot - 1000 x 1200mm
SKU:PAC-ef8c10
Enhance productivity with the SOCO RIB 1214 Palletizing Robot - Compact, flexible, and cost-effective.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
SOCO RIB 1214 Palletizing Robot - 1000 x 1200mm
$16,999.00
Quantity: 1
Claim Your Seller Account
SOCO RIB 1214 Palletizing Robot - 1000 x 1200mm
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

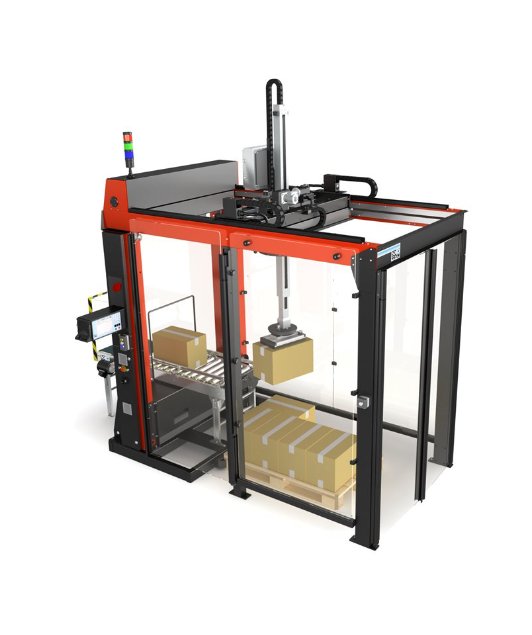

The SOCO RIB 1214 Palletizing Robot offers a compact and flexible solution for palletizing tasks. With a universal vacuum gripper head and easy programming, this robot improves productivity, streamlines production, and cuts costs. Its robust construction, 3-axis movement, and compatibility with various item weights make it ideal for industrial applications. The plug-and-play design, online/offline programming options, and minimal maintenance requirements ensure operational simplicity. Enhance your working environment with this efficient palletizing robot from SOCO SYSTEM.
Product Specifications
Accessories Accessories
Financial Options such as Leasing, Rent, or Pay-per-use Contracts | Rollerskate Support for Extreme Mobility | Safety Fence with Foldable "Garage" Door Opening | Safety Fence with Laser Scanner Door Opening
Additional Information Additional Information

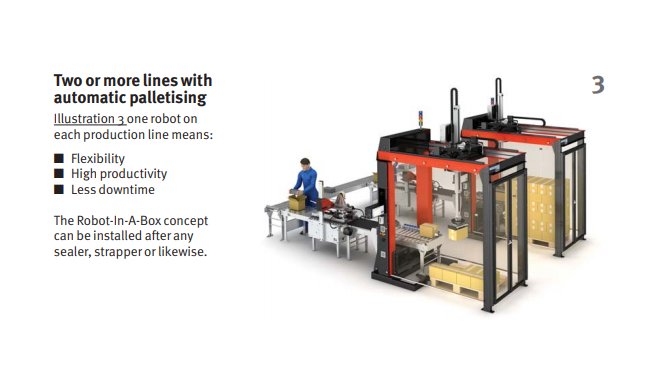

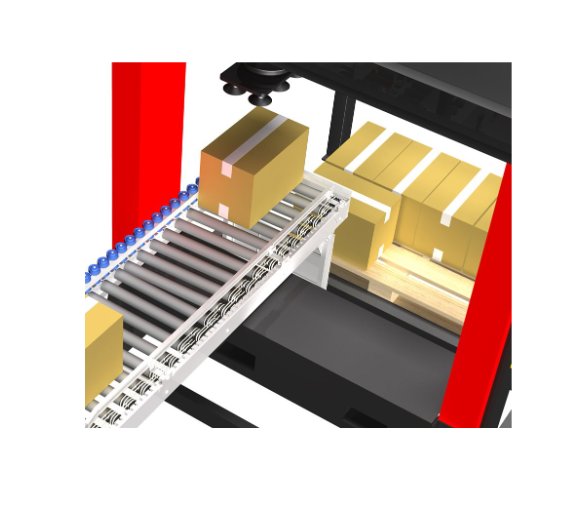

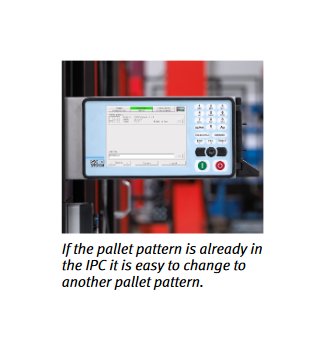

The Robot-In-A-Box conceptThe concept is based on the standard SOCO SYSTEM porta robot base construction. An easy and flexible unit for you to deploy wherever it is needed in your production setup.The Robot-In-A-Box unit is equipped with universal vacuum gripper head and universal pallet positioning device and will handle practically any case or pallet you want to operate.Online or offline programmingThe robot IPC is delivered preinstalled with SOCO Logic self-programming software and Pallet Builder software for complex pallet patterns.Service, education, and deliveryThe Robot-In-A-Box solution comes with a complete service management backup including webcam and remote control assistance setup, e-learning based education of all relevant personal, and "plug & play" delivery to your production site.Safe to operate, simple and versatileThe machine requires minimal maintenance and is easy to access.Online programmingThe robot calculates the pallet pattern by itself â¦The case to be palletized is led into the robot, which then registers the case dimensions. The robot then quickly calculates the optimum pallet pattern and starts palletizing. The preferences required behind the calculation are entered in the SOCOLogic software before the robot is put into operation. Preferences can be number of layers, pallet pattern type, layer pads, etc.It is, naturally, possible to choose another pallet pattern or change the current pattern at any time.Offline programmingFor programming of more advanced pallet load programs, the Pallet Builder software included is used.New pallet patterns generated using optimization software such as CAPE PACK® can be transferred online or via disk.Change between existing pallet patternsIf the pallet pattern is already in the IPC it is easy to change to another pallet pattern.The software is Windows-based and the IPC can be used for control of peripheral equipment such as pallet conveyors, pallet magazines, etc.Manual palletizingThe traditional operator work station. Filling, taping and palletizing manually.If you concentrate your end-of-line manpower on the refined steps of your packing process, you can rationalize and increase effectiveness/ throughput.Automatic palletizingInstall a standardized plug & play robot solution with close to-zero project management overhead.The robot for pallet size 800 mm x 1200 mm. Same or less floor space as the traditional manual operator work station.Ergonomics are improved by eliminating heavy load functions.Two or more lines with automatic palletizing one robot on each production line means:FlexibilityHigh productivityLess downtimeThe Robot-In-A-Box concept can be installed after any sealer, strapper or likewise.
Note Note
Other specifications can be achieved by individual customizations.Subject to alteration.
Specifications Alternating Current Ac Voltage
230 V | 250 V | 3 x 210 V | 3 x 360 V | 400 V | 440 V | 480 V
Specifications Approximate Air Consumption
15 L/cycle
Specifications Approximate Connected Load
2.5 kW
Specifications Axes
The 3 basic x-, y-, z-axis as well as 270 dg. turning of the robot head in steps of 1 dg.
Specifications Capacity
Up to 10 transfers a minute depending on the pallet pattern, the size, weight and quality of the items.
Specifications Color
As standard, the robot is supplied in RAL 2002.
Specifications Conveyors
The standard width is 500 mm.
Specifications Firm Z Axis Floor To Ceiling Height H1
3620 mm
Specifications Firm Z Axis Floor To Ceiling Height H2
4220 mm
Specifications Firm Z Axis Floor To Ceiling Height H3
4820 mm
Specifications Firm Z Axis Load Height H1
1450 mm
Specifications Firm Z Axis Load Height H2
1750 mm
Specifications Firm Z Axis Load Height H3
2050 mm
Specifications Frequency
50 Hz | 60 Hz
Specifications Material
The palletizing robot is available in stainless steel
Specifications Maximum Item Weight
20 to 25 kg
Specifications Maximum Pallet Sizes
1000 x 1200 mm
Specifications Minimum Air Consumption
6 bar
Specifications Model
RIB 1214
Specifications Note For Floor To Ceiling Height
The values stated are specifically for the standard Robot-In-A-Box product solution.
Specifications Telescopic Z Axis Floor To Ceiling Height H1
2945 mm
Specifications Telescopic Z Axis Floor To Ceiling Height H2
3395 mm
Specifications Telescopic Z Axis Floor To Ceiling Height H3
3845 mm
Specifications Telescopic Z Axis Load Height H1
1400 mm
Specifications Telescopic Z Axis Load Height H2
1700 mm
Specifications Telescopic Z Axis Load Height H3
2000 mm
