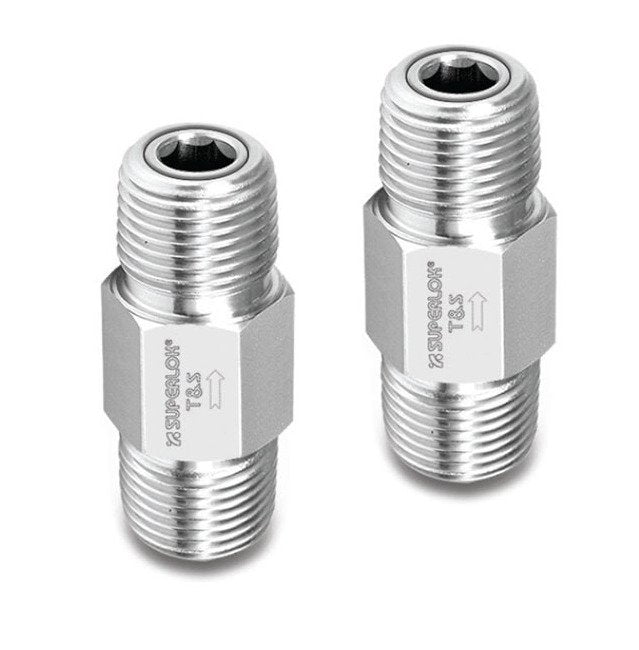

SOCV Series One-Piece Check Valve
SOCV Series One-Piece Check Valve
SKU:SOC-fd44ed
Reliable SOCV Series One-Piece Check Valve with 3000 psig working pressure, ideal for industrial applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
SOCV Series One-Piece Check Valve
$69.99
Quantity: 1
Claim Your Seller Account
SOCV Series One-Piece Check Valve
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

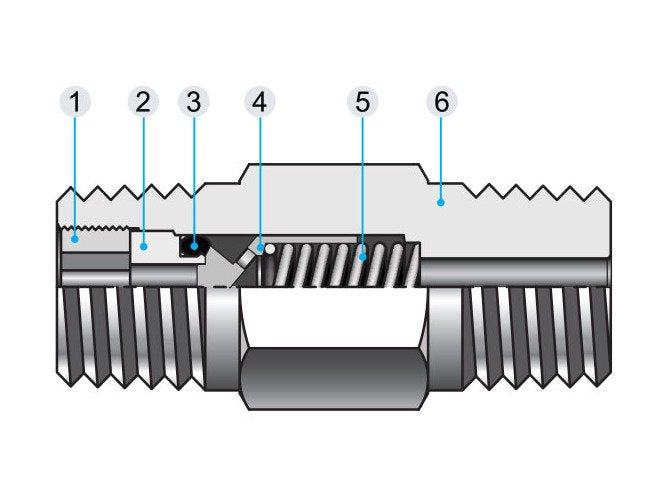

The SOCV Series One-Piece Check Valve is designed for precision and reliability. With a range of nominal cracking pressure options and a maximum working pressure of 3000 psig, this valve ensures optimal performance in various industrial applications. The valve features 316 stainless steel body construction, Fluorocarbon (FKM) O-Ring with a temperature rating of -10 to 375 °F, and Nitrile Butadiene Rubber (NBR) O-Ring with a temperature rating of -10 to 250 °F. Each valve undergoes rigorous testing for cracking pressure and reseal performance, guaranteeing efficiency and durability. Whether for consumer or institutional use, this check valve exceeds industry standards with its quality build and precise functionality.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass

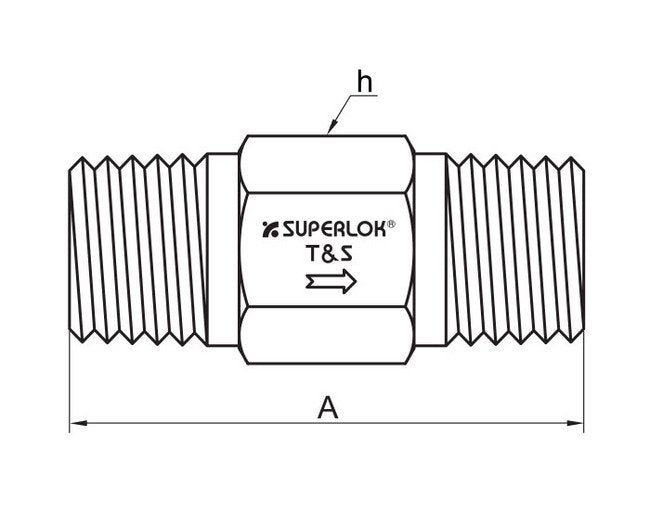

Technical Specs Dimension A
41.2 mm
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
14.3 mm | 9/16 in
Technical Specs Inlet End Connections
1/4 in. Male International Organization for Standardization (ISO)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/4 Male International Organization for Standardization (ISO)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
