Solar-Powered Swing Gate Operator with Battery Backup
Solar-Powered Swing Gate Operator with Battery Backup
SKU:SWI-9bb4cf
Enhance security with the Solar Power Swing Gate Op: robust, reliable & compliant with UL standards.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Solar-Powered Swing Gate Operator with Battery Backup
$1,699.99
Quantity: 1
Claim Your Seller Account
Solar-Powered Swing Gate Operator with Battery Backup
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

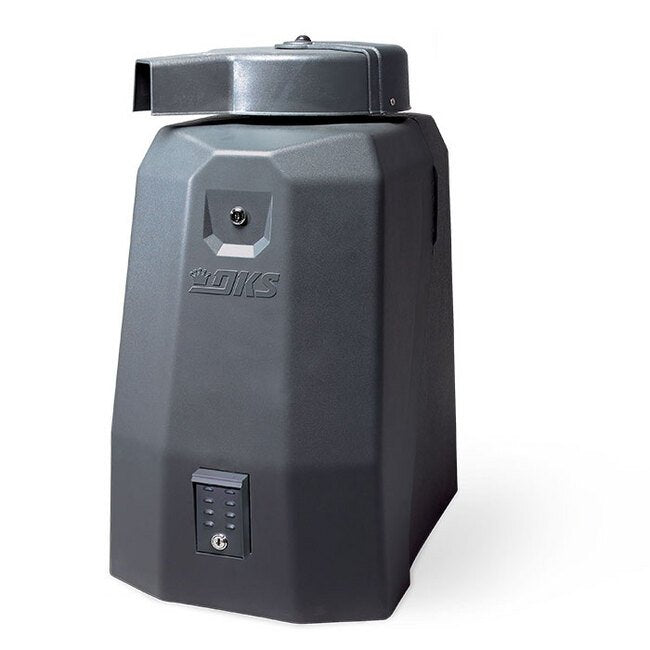

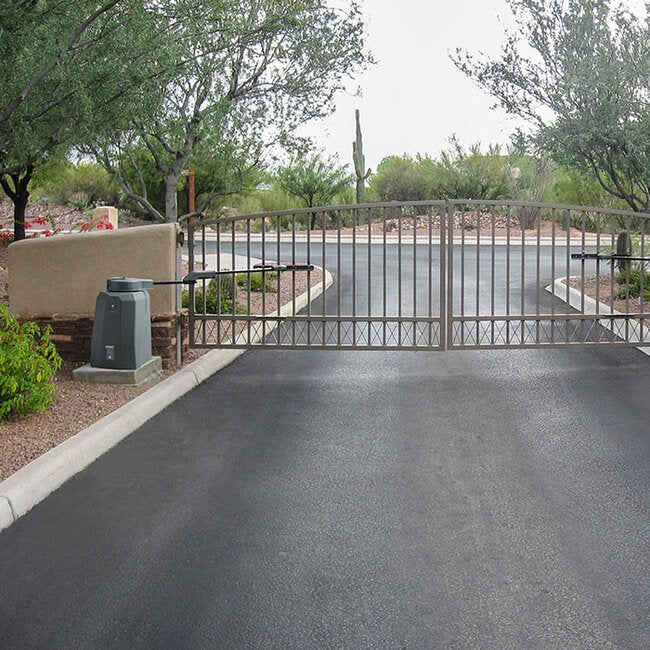

The DoorKing Solar Power Input Swing Gate Operator is a reliable solution for both residential and commercial applications. With a heavy-duty gearbox and steel frame, it ensures strength, quiet operation, and enhanced security. This swing gate operator offers features like adjustable limit switches, auto-close timer, gate overlap for dual operation, and battery protection circuit. Compliant with UL 325 and 991 standards, this operator is ideal for installations requiring utmost safety and durability.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
AC Powered Operator Only115 VAC Convenience outletsAC Power Shut-Off switchMagnetic lock powerDC Powered Operator Only0.0 Amp SBPD(PatPend) Circuit insures longer battery life
Applications Applications
ResidentialCommercial
Duty Cycle Type Duty Cycle Type
150+1,2with DK solar kit, unknown with systems / batteries provided by others1 Assumes gate swings in a level arc, in good condition with properly adjusted hardware.2 Assumes a 16 ft gate weighing 800 lb Other external factors (temperature, charge state of batteries, gate weight, gate length, etc.) will affect the performance of the Gate Operator and may reduce the number of cycles shown.
Key Features Key Features

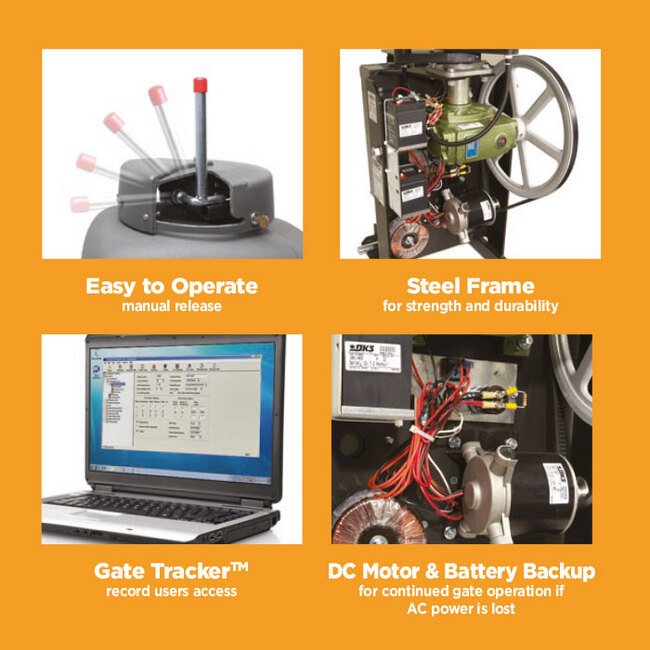

Heavy-duty gearboxHeavy-duty steel frame provides strength and quiet operation7.2 Ah batteries standard; 18 Ah batteries optionalEasy adjustable electronic magnetic limit switchesAuto-close timer 1-30 secondsGate overlap feature for dual (bi-parting) gate operationSelectable shadow/reverse loop functionDC Power Shut-Off switchBattery protection circuitPorts for plug-in open and reverse loop detectors - DKS detectors onlyGate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)AC Powered Operator Only115 VAC Convenience outletsAC Power Shut-Off switchMagnetic lock powerDC Powered Operator Only0.0 Amp SBPD(Pat Pend) Circuit insures longer battery life
Options Options
18 Ah batteries (AC powered operator only) Solar Kit (Includes two 18 Ah batteries and 10 Watt, 24 VDC solar panel) Primary / secondary connection cable.Uphill arm pivot assembly and torsion rod assemblyPlug-in loop detectors.Heater kit for cold environments (Ac powered operators only).Surge suppressors.
Specifications 90 Degree Opening Time
12 to 14 s
Specifications Alternating Current Ac Voltage
24 V
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
yes
Specifications Frame Material
Steel
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
16 ft
Specifications Maximum Gate Weight
800 lb
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad
Specifications Note
Solar power input
Specifications Number Of Convenience Outlets
2
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 46 ºC | 10 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Mechanic
Specifications Solar Compatible
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Swing
Specifications Usage
Commercial | Residential
Technical Specifications Technical Specifications

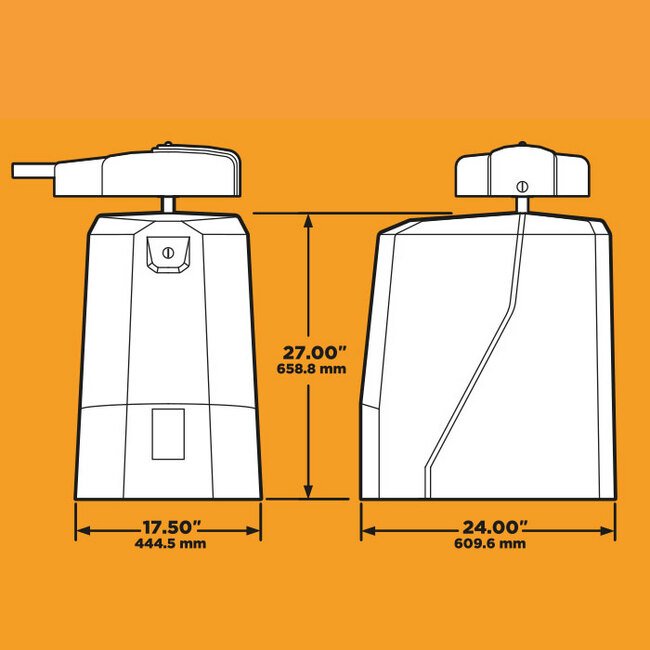

Maximum gate width 16-ft.Maximum gate weight 800 pounds. (Assumes gate swings in a level arc, in good condition with properly adjusted hardware.)Unique breakaway hub design prevents gear box damage if the gate is struck.115 / 230 VAC input: 1.8A / 0.9A. 24 VDC input: 8 AmpClass I, II, III and IV applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.) Dimensions: 20.5 "W x 38.5 "H x 30 "D (52cm W x 97.8cm H x 76.2cm D)
