Solberg WL Series Medium-High Vacuum Filter
Solberg WL Series Medium-High Vacuum Filter
SKU:CLE-8837c8
Enhance vacuum system longevity with Solberg's WL Series Filter designed for medium-high vacuum applications in industrial and semiconductor settings.
Regular price
$1,486.75
Regular price
Sale price
$1,486.75
Unit price
per
Initiate Order
Solberg WL Series Medium-High Vacuum Filter
$1,486.75
Quantity: 1
Claim Your Seller Account
Solberg WL Series Medium-High Vacuum Filter
$1,486.75
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

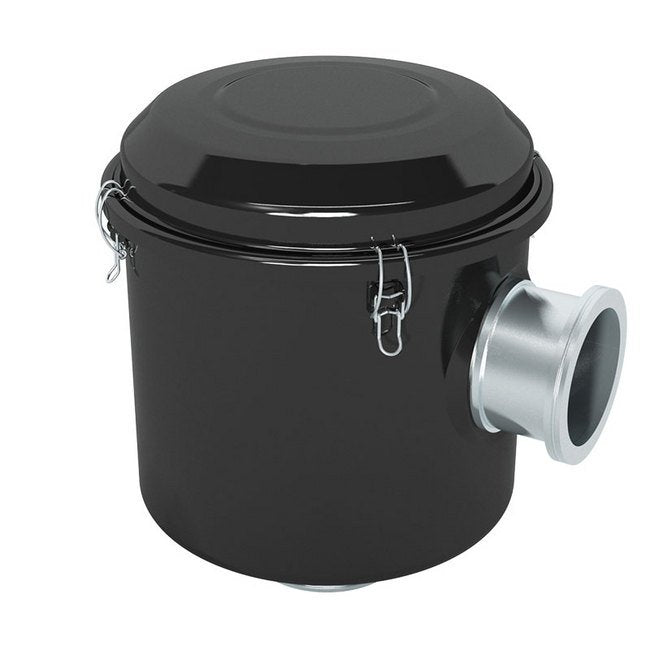

The Solberg WL Series Vacuum Filter in Black is the optimal solution for industrial and semiconductor processes subjected to harsh thermal and pressure cycles. With superior protection and longevity, this filter is designed for medium-high vacuum applications, including vacuum furnaces and deposition tools. Housings undergo 100% helium leak testing for vacuum integrity, ensuring leak rates as low as 1x 10-5 mbar/l/s. Equipped with replaceable filter elements and various vacuum-rated flange options, this filter offers unmatched performance and durability.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
520 scfm
Specifications Connections
ISO FLANGE

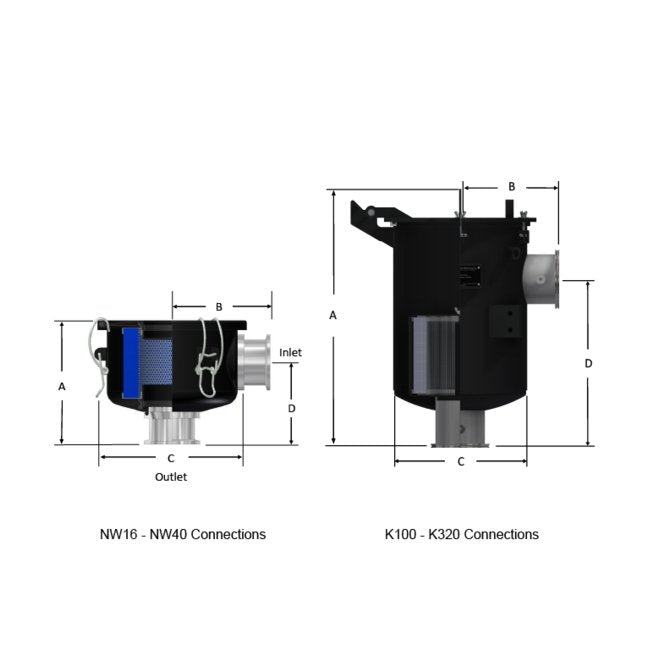

Specifications Dimension A
16.18 in
Specifications Dimension B
9.31 in
Specifications Dimension C
13.25 in
Specifications Dimension D
9.14 in
Specifications Inlet And Outlet Connection Size
K100
Specifications Media
Paper
Specifications Micron Size
2 µm
Specifications Replacement Element Kit
238
Specifications Web Price
1486.75 USD
