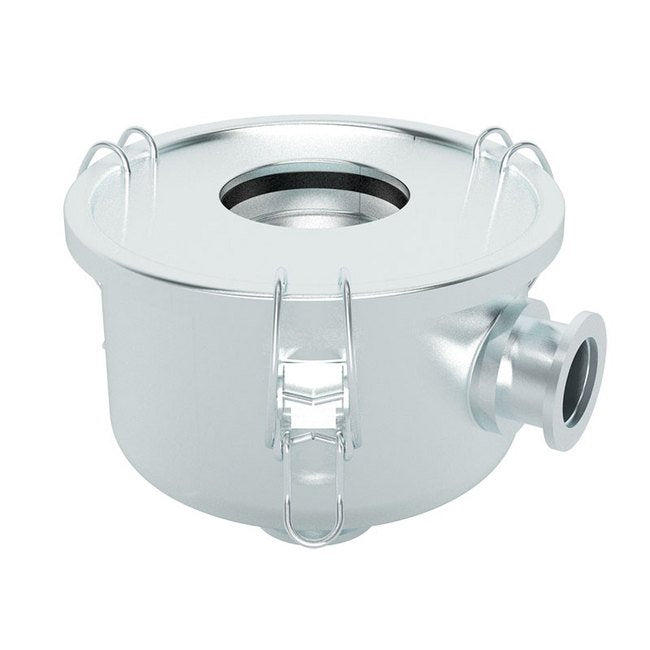

Solberg WL Series Nickel Inlet Vacuum Filter
Solberg WL Series Nickel Inlet Vacuum Filter
SKU:CLE-884e47
Enhance vacuum system longevity with Solberg's Nickel Inlet Vacuum Filter for industrial and semiconductor applications.
Regular price
$391.40
Regular price
Sale price
$391.40
Unit price
per
Initiate Order
Solberg WL Series Nickel Inlet Vacuum Filter
$391.40
Quantity: 1
Claim Your Seller Account
Solberg WL Series Nickel Inlet Vacuum Filter
$391.40
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

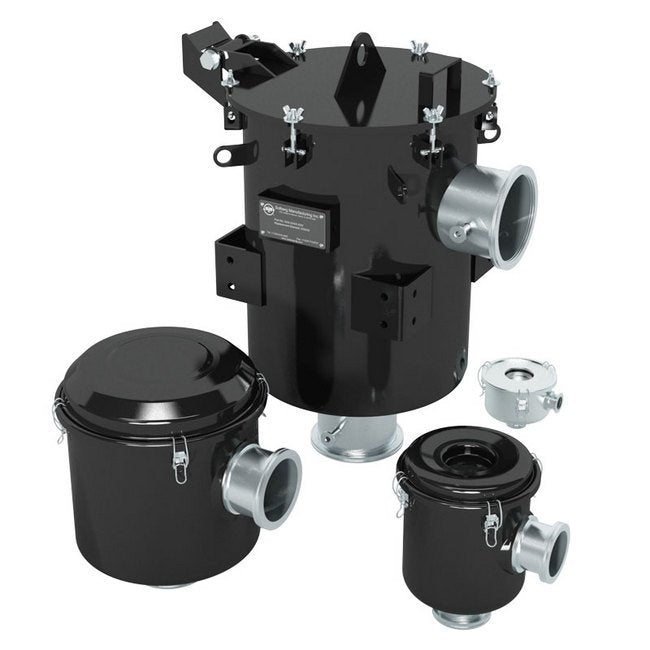

The Solberg WL Series Nickel Inlet Vacuum Filter is a robust solution designed for industrial and semiconductor processes exposed to harsh thermal and pressure cycles. Perfect for medium-high vacuum applications utilizing vacuum furnaces or deposition tools, this filter features various vacuum-rated flange options and replaceable filter elements for optimum system protection and longevity. The housing undergoes rigorous 100% helium leak testing to ensure vacuum integrity, confirming leak rates down to 1x 10-5 mbar/l/s.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
55 scfm
Specifications Connections
ISO FLANGE

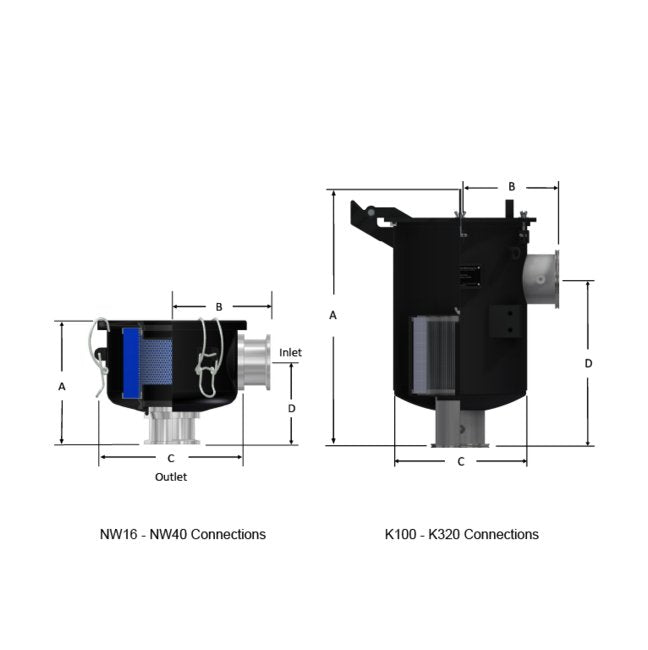

Specifications Dimension A
4.38 in
Specifications Dimension B
3.38 in
Specifications Dimension C
5.75 in
Specifications Dimension D
2.75 in
Specifications Inlet And Outlet Connection Size
NW40
Specifications Media
Polyester
Specifications Micron Size
5 µm
Specifications Replacement Element Kit
843
Specifications Web Price
391.40 USD
