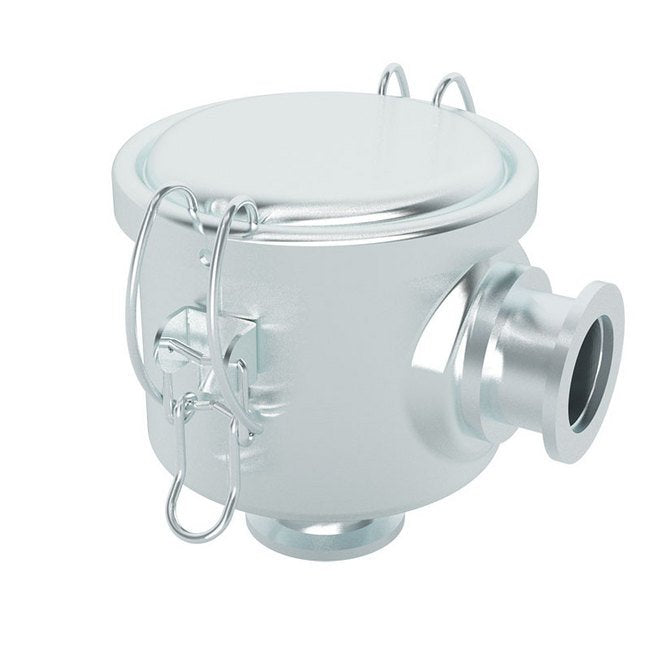

Solberg WL Series Nickel Vacuum Filter
Solberg WL Series Nickel Vacuum Filter
SKU:CLE-213019
Enhance vacuum system performance with the Solberg WL Series Nickel Vacuum Filter designed for harsh industrial conditions. Helium leak tested for superior vacuum integrity.
Regular price
$272.65
Regular price
Sale price
$272.65
Unit price
per
Initiate Order
Solberg WL Series Nickel Vacuum Filter
$272.65
Quantity: 1
Claim Your Seller Account
Solberg WL Series Nickel Vacuum Filter
$272.65
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Solberg WL Series Nickel Vacuum Filter is specifically engineered for industrial and semiconductor processes subject to rapid thermal and pressure changes. Perfect for medium-high vacuum applications employing vacuum furnaces or deposition tools, this filter offers exceptional protection and durability for the vacuum system. With vacuum rated flange options and replaceable filter elements, the WL Series ensures longevity and optimal performance. Each housing undergoes rigorous 100% helium leak testing to maintain vacuum integrity and validate leak rates down to 1x 10-5 mbar/l/s.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
23 scfm
Specifications Connections
ISO FLANGE

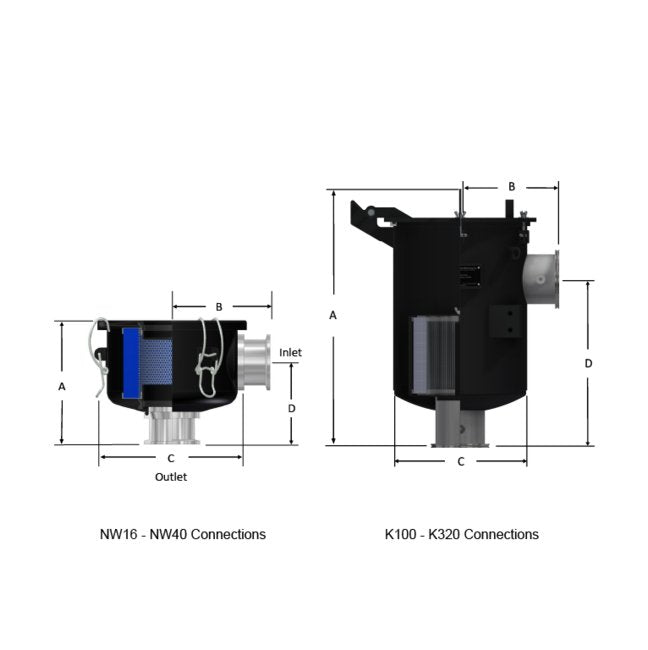

Specifications Dimension A
3.88 in
Specifications Dimension B
2.63 in
Specifications Dimension C
3.75 in
Specifications Dimension D
2.25 in
Specifications Inlet And Outlet Connection Size
NW16
Specifications Media
Polyester
Specifications Micron Size
5 µm
Specifications Replacement Element Kit
825
Specifications Web Price
272.65 USD
