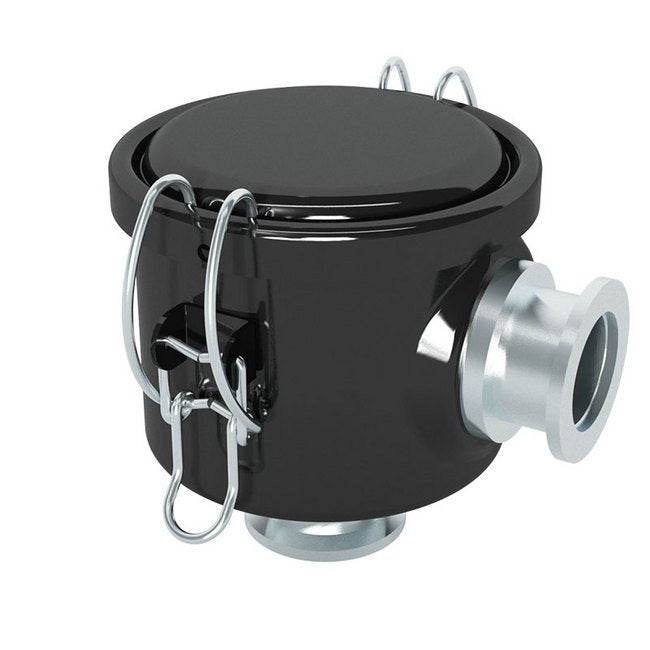

Solberg WL Series Vacuum Filter - Black, NW25 Flange, Polyester Media

Name: Solberg WL Series Vacuum Filter - Black, NW25 Flange, Polyester Media
Brand: Compressed Air Systems, Inc.
SKU: CLE-90d4fd
Price: 250.8 USD
Availability: OutOfStock

SKU:CLE-90d4fd

Enhance vacuum system performance with Solberg's WL Series Vacuum Filter - Black, ideal for industrial and semiconductor applications. Helium leak tested for vacuum integrity.

$250.80

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Solberg WL Series Vacuum Filter in Black is the perfect choice for industrial and semiconductor applications requiring robust performance under harsh conditions. Designed for medium-high vacuum operations with vacuum furnaces or deposition tools, this filter features vacuum rated flange options for easy installation and replaceable filter elements for extended system protection. Rigorously helium leak tested for vacuum integrity, the WL Series offers superior longevity and efficiency. With an air flow of 25 scfm and a micron size of 5 µm, this filter ensures clean air treatment in critical processes.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Air Flow

25 scfm

Specifications Connections

ISO FLANGE

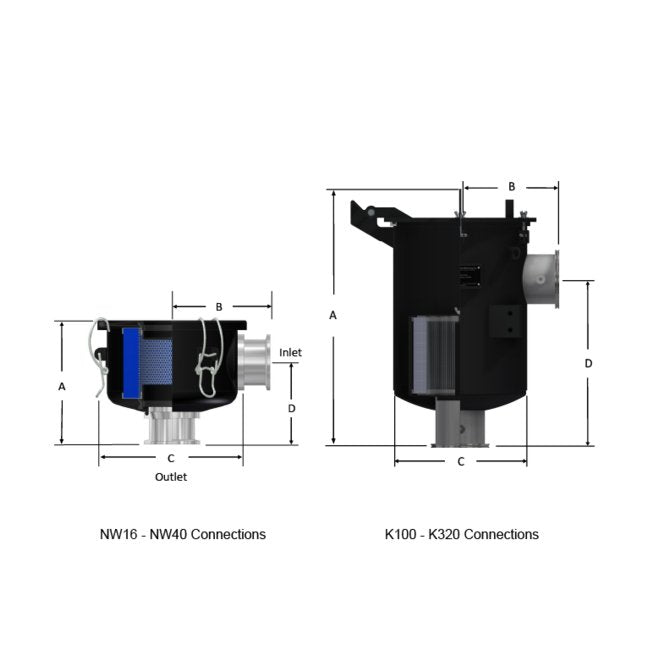

Specifications Dimension A

3.88 in

Specifications Dimension B

2.63 in

Specifications Dimension C

3.75 in

Specifications Dimension D

2.25 in

Specifications Inlet And Outlet Connection Size

NW25

Specifications Media

Polyester

Specifications Micron Size

5 Âµm

Specifications Replacement Element Kit

825

Specifications Web Price

250.80 USD

Solberg WL Series Vacuum Filter - Black, NW25 Flange, Polyester Media
