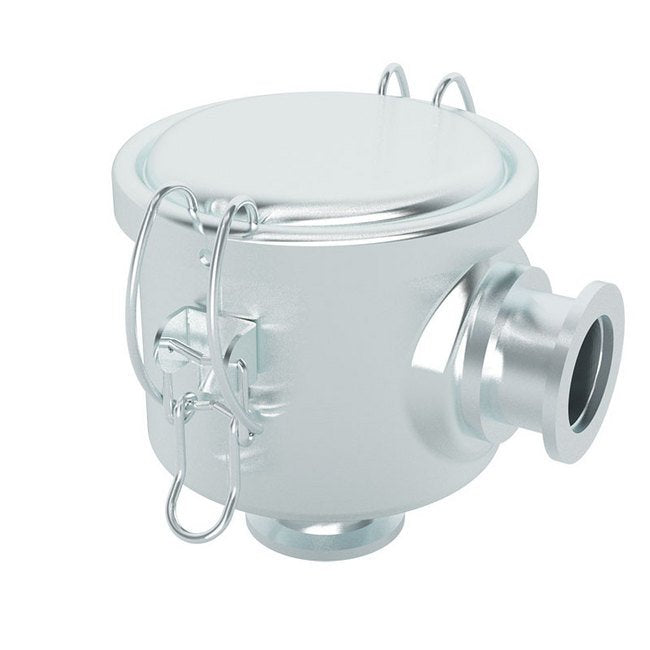

Solberg WL Series Vacuum Filter - Nickel
Solberg WL Series Vacuum Filter - Nickel
SKU:CLE-8a7767
Solberg WL Series Vacuum Filter - Nickel: Engineered for industrial and semiconductor processes, offering superior protection and longevity in medium-high vacuum applications.
Regular price
$239.80
Regular price
Sale price
$239.80
Unit price
per
Initiate Order
Solberg WL Series Vacuum Filter - Nickel
$239.80
Quantity: 1
Claim Your Seller Account
Solberg WL Series Vacuum Filter - Nickel
$239.80
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Solberg WL Series Vacuum Filter in Nickel finish is engineered for demanding industrial and semiconductor processes exposed to rapid thermal and pressure cycles. Designed for medium-high vacuum applications in vacuum furnaces and deposition tools, this filter boasts a range of vacuum-rated flange options and replaceable filter elements for enhanced system protection and durability. Each housing undergoes rigorous 100% helium leak testing to ensure vacuum integrity, confirming leak rates as low as 1x 10-5 mbar/l/s. With features like high-quality filter media, precise dimensions, and ISO flange connections, the WL Series Vacuum Filter guarantees optimal performance in challenging environments.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
23 scfm
Specifications Connections
ISO FLANGE

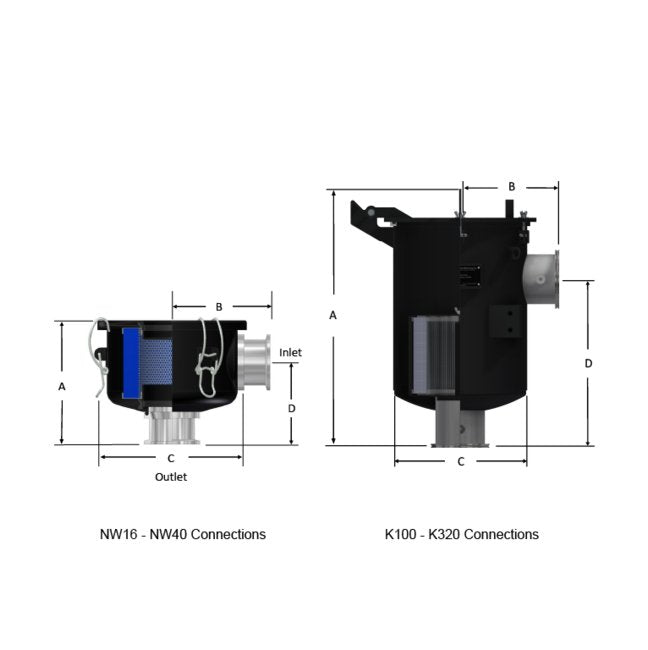

Specifications Dimension A
3.88 in
Specifications Dimension B
2.63 in
Specifications Dimension C
3.75 in
Specifications Dimension D
2.25 in
Specifications Inlet And Outlet Connection Size
NW16
Specifications Media
Paper
Specifications Micron Size
2 µm
Specifications Replacement Element Kit
824
Specifications Web Price
239.80 USD
