Solid Copper Bar 500A with Clamped Joints - 5ft Length
Solid Copper Bar 500A with Clamped Joints - 5ft Length
SKU:CRA-f06edc
High-performance Solid Copper Bar 500A with Clamped Joints - ideal for crane control systems. Reliable, efficient, and durable.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Solid Copper Bar 500A with Clamped Joints - 5ft Length
$79.99
Quantity: 1
Claim Your Seller Account
Solid Copper Bar 500A with Clamped Joints - 5ft Length
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

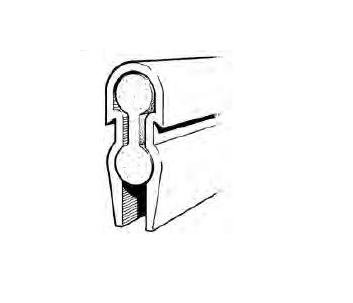

The Solid Copper Bar 500A with Clamped Joints is precision roll-formed from 1/32" solid copper material, ensuring superior conductivity and durability. With a high heat cover type and an ampacity of 500A for continuous duty, this conductor bar excels in demanding electrical applications. Featuring a cross-sectional area of 0.1477 in² and low resistance of 40 µΩ/ft, it offers efficient power transmission. With stringent supports spacing requirements and a wide operating temperature range from -60 to 400ºF, this conductor bar is ideal for crane control and electrification systems.
Product Specifications
Electrical Data Ampacity Continuous Duty
500 A
Electrical Data Impedance Z 60hz
70 µΩ/ft
Electrical Data Reactance X 60 Hz
60 µΩ/ft
Electrical Data Resistance R For Dc At 20 C
40 µΩ/ft
Specifications Cover Type
High Heat
Specifications Cross Sectional Area
0.1477 in²
Specifications Expansion Coefficient
0.000009 ºF
Specifications Length
5 ft
Specifications Material
Solid Copper
Specifications Normal Ambient
-60 to 400 ºF
Specifications Support Spacing
5 ft
Specifications Weight
12.3 lb | 0.16 lb/ft
