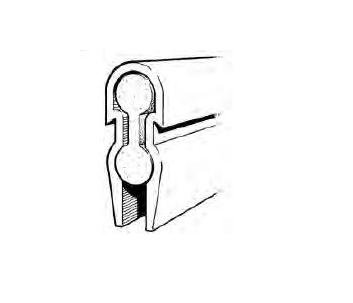

Solid Copper Conductor Bar 500A with Clamped Joints
Solid Copper Conductor Bar 500A with Clamped Joints
SKU:CRA-d5a248
High-performance Solid Copper Conductor Bar 500A with Clamped Joints for efficient power transmission in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Solid Copper Conductor Bar 500A with Clamped Joints
$399.99
Quantity: 1
Claim Your Seller Account
Solid Copper Conductor Bar 500A with Clamped Joints
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Solid Copper Conductor Bar 500A with Clamped Joints is a reliable solution for crane control and electrification systems in industrial settings. Constructed from high-quality solid copper with a cross-sectional area of 0.1477 in², this conductor bar features an ampacity of 500A, making it ideal for heavy-duty applications. With a low resistance of 40 µΩ/ft and an impedance of 70 µΩ/ft, this conductor bar ensures efficient power transmission. The clamped joints offer easy installation and secure connections, while the high heat cover type and wide temperature range (-60 to 400 °F) enhance durability and performance. Compliant with industry standards, this product guarantees reliable and safe electrical distribution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Data Ampacity Continuous Duty
500 A
Electrical Data Impedance Z 60hz
70 µΩ/ft
Electrical Data Reactance X 60 Hz
60 µΩ/ft
Electrical Data Resistance R For Dc At 20 C
40 µΩ/ft
Specifications Cover Type
High Heat
Specifications Cross Sectional Area
0.1477 in²
Specifications Expansion Coefficient
0.000009 ºF
Specifications Length
20 ft
Specifications Material
Solid Copper
Specifications Normal Ambient
-60 to 400 ºF
Specifications Support Spacing
5 ft
Specifications Weight
24.6 lb | 0.16 lb/ft
