Song Chuan DC Switch Relay HD022 for Charger Applications
Song Chuan DC Switch Relay HD022 for Charger Applications
SKU:SON-61e8e8
Enhance power management with the reliable Song Chuan DC Switch Relay HD022. UL safety approved for peace of mind.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Song Chuan DC Switch Relay HD022 for Charger Applications
$35.99
Quantity: 1
Claim Your Seller Account
Song Chuan DC Switch Relay HD022 for Charger Applications
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

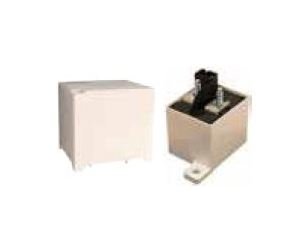

The Song Chuan DC Switch Relay HD022 is a reliable and high-performance solution designed for charger applications in both consumer and institutional settings. With a contact configuration of 1A and a maximum allowable contact current of 80 A, this relay ensures efficient power management. Its compact outline of 50mm x 41.5mm x 46.5mm makes it easy to integrate into various systems. With UL safety approval, this switch relay guarantees compliance with industry standards, providing peace of mind to buyers. Ensure smooth operation and superior performance with the Song Chuan HD022 DC Switch Relay.
Product Specifications
Specifications Ac Dielectric Strength Between Contact And Coil
4000 V
Specifications Ac Dielectric Strength Between Open Contact
2000 V
Specifications Contact Configuration
1A
Specifications Contact Rating Resistive Load At 400 Volt V Dc Vo
80 A
Specifications Dc Coil Voltage
12 to 24 V
Specifications Dc Holding Power Consumption
1.5 W
Specifications Dc Power Consumption
6 W
Specifications Electrical Life Expectancy
5 x 102 min
Specifications Maximum Allowable Contact Current
80 A
Specifications Mechanical Life Expectancy
5 x 105 min
Specifications Outline Height
46.5 mm
Specifications Outline Length
50 mm
Specifications Outline Width
41.5 mm
Specifications Safety Approval
Underwriters Laboratories (UL)
