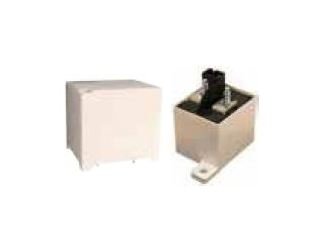

Song Chuan HD024 DC Switch Relay for Charger Application

Name: Song Chuan HD024 DC Switch Relay for Charger Application
Brand: Marsh Electronics, Inc.
SKU: SON-c7d6eb
Price: 24.99 USD
Availability: OutOfStock

SKU:SON-c7d6eb

Reliable Song Chuan HD024 DC Switch Relay for Charger Applications with 120A Max Current & UL Safety Approval.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Song Chuan HD024 DC Switch Relay is a high-quality component designed for charger applications. With a sturdy build and precise specifications, this relay ensures reliable performance under demanding conditions. The 120A maximum contact current rating and UL safety approval make it a trusted choice for both consumer and institutional buyers. Its compact outline dimensions of 50mm x 41.5mm x 46.5mm and low power consumption of 6W further enhance its appeal. Trust Song Chuan for dependable relay solutions that meet industry standards.

Product Specifications

Specifications Ac Dielectric Strength Between Contact And Coil

4000 V

Specifications Ac Dielectric Strength Between Open Contact

2000 V

Specifications Contact Configuration

Specifications Contact Rating Resistive Load At 400 Volt V Dc Vo

120 A

Specifications Dc Coil Voltage

12 to 24 V

Specifications Dc Holding Power Consumption

1.5 W

Specifications Dc Power Consumption

6 W

Specifications Electrical Life Expectancy

1 x 102 min

Specifications Maximum Allowable Contact Current

120 A

Specifications Mechanical Life Expectancy

5 x 105 min

Specifications Outline Height

46.5 mm

Specifications Outline Length

50 mm

Specifications Outline Width

41.5 mm

Specifications Safety Approval

Underwriters Laboratories (UL)
