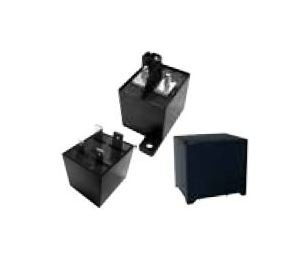

Song Chuan HV022 High Voltage Relay, 80A, 12-24V DC Coil

Name: Song Chuan HV022 High Voltage Relay, 80A, 12-24V DC Coil
Brand: Marsh Electronics, Inc.
SKU: SON-4be89a
Price: 29.99 USD
Availability: OutOfStock

SKU:SON-4be89a

Reliable Song Chuan HV022 High Voltage Relay for 80A, 12-24V DC Coil. Compact design, high durability, and safety features.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Song Chuan HV022 High Voltage Relay is a reliable solution for high-voltage applications in both consumer and institutional settings. With a contact rating of 80A at 400V DC voltage, this relay ensures efficient power transmission. The compact design, with dimensions of 50mm x 41.5mm x 46.5mm, allows for easy installation and integration. With a mechanical life expectancy of 5 x 10^5 min and electrical life expectancy of 1 x 10^3 min, this relay delivers long-lasting performance. Additionally, it meets AC dielectric strength requirements of 2000V between open contacts and 4000V between contact and coil, ensuring safety and reliability.

Product Specifications

Specifications Ac Dielectric Strength Between Contact And Coil

4000 V

Specifications Ac Dielectric Strength Between Open Contact

2000 V

Specifications Contact Configuration

Specifications Contact Rating Resistive Load At 400 Volts V Dc V

80 A

Specifications Dc Coil Voltage

12 to 24 V

Specifications Dc Power Consumption

5 W

Specifications Electrical Life Expectancy

1 x 103 min

Specifications Maximum Allowable Contact Current

Specifications Mechanical Life Expectancy

5 x 105 min

Specifications Outline Height

46.5 mm

Specifications Outline Length

50 mm

Specifications Outline Width

41.5 mm

Song Chuan HV022 High Voltage Relay, 80A, 12-24V DC Coil
