Song Chuan HV024 High Voltage Relay, 12-24V DC Coil, 40A/120A 400V Contacts

Name: Song Chuan HV024 High Voltage Relay, 12-24V DC Coil, 40A/120A 400V Contacts
Brand: Marsh Electronics, Inc.
SKU: SON-9a1059
Price: 29.99 USD
Availability: OutOfStock

SKU:SON-9a1059

High-performance Song Chuan HV024 High Voltage Relay for institutional and government applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

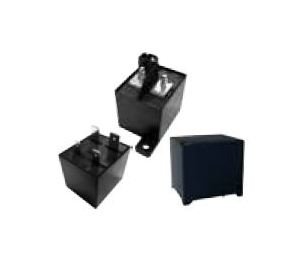

The Song Chuan HV024 High Voltage Relay is a reliable and compact solution for high-voltage applications. With a contact configuration of 1A and maximum allowable contact current of 120A, this relay offers exceptional performance and durability. The DC coil voltage range of 12 to 24V and low power consumption of 5W make it energy-efficient. Meeting industry standards for mechanical and electrical life expectancy, along with AC dielectric strength ratings, this relay is ideal for institutional and government procurement needs.

Product Specifications

Specifications Ac Dielectric Strength Between Contact And Coil

4000 V

Specifications Ac Dielectric Strength Between Open Contact

2000 V

Specifications Contact Configuration

Specifications Contact Rating Resistive Load At 400 Volts V Dc V

40 A | 120 A

Specifications Dc Coil Voltage

12 to 24 V

Specifications Dc Power Consumption

5 W

Specifications Electrical Life Expectancy

1 x 102 min | 3 x 103 min

Specifications Maximum Allowable Contact Current

120

Specifications Mechanical Life Expectancy

5 x 105 min

Specifications Outline Height

46.5 mm

Specifications Outline Length

50 mm

Specifications Outline Width

41.5 mm
