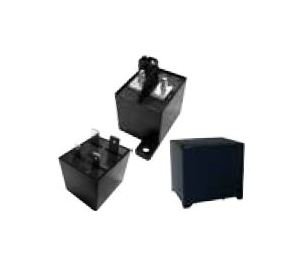

Song Chuan MV011 Middle Voltage Relay
Song Chuan MV011 Middle Voltage Relay
SKU:SON-2d9d9d
Reliable Song Chuan MV011 Middle Voltage Relay for institutional voltage applications. Compact design, 100A contact current, and low power consumption.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Song Chuan MV011 Middle Voltage Relay
$59.99
Quantity: 1
Claim Your Seller Account
Song Chuan MV011 Middle Voltage Relay
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Song Chuan MV011 Middle Voltage Relay is a reliable and efficient relay designed for middle voltage applications. With a compact outline of 50mm x 41.5mm x 46.5mm, this relay features a 1A contact configuration with a maximum allowable contact current of 100A. It operates at a DC coil voltage range of 12 to 48V with low power consumption of 3.2W. The relay offers a mechanical life expectancy of 1 x 10^6 min and an electrical life expectancy of 1 x 10^3 min, ensuring durability and long-term performance. It complies with industry standards for AC and DC dielectric strength, making it suitable for various institutional procurement needs.
Product Specifications
Specifications Ac Dielectric Strength Between Contact And Coil
4000 V
Specifications Ac Dielectric Strength Between Open Contact
1000 V
Specifications Contact Configuration
1A
Specifications Contact Rating Resistive Load At 60 Volts V Dc Vo
100 A
Specifications Dc Coil Voltage
12 to 48 V
Specifications Dc Power Consumption
3.2 W
Specifications Electrical Life Expectancy
1 x 103 min
Specifications Maximum Allowable Contact Current
100 A
Specifications Mechanical Life Expectancy
1 x 106 min
Specifications Outline Height
46.5 mm
Specifications Outline Length
50 mm
Specifications Outline Width
41.5 mm
