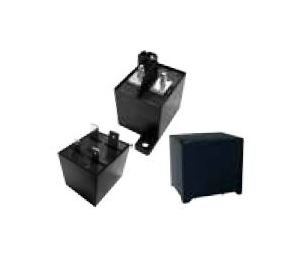

Song Chuan MV013 Middle Voltage Relay
Song Chuan MV013 Middle Voltage Relay
SKU:SON-06021d
High-performance Song Chuan MV013 Middle Voltage Relay for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Song Chuan MV013 Middle Voltage Relay
$59.99
Quantity: 1
Claim Your Seller Account
Song Chuan MV013 Middle Voltage Relay
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Song Chuan MV013 Middle Voltage Relay is a top-of-the-line product designed for reliable and efficient performance in industrial settings. With a contact configuration of 1A and a maximum allowable contact current of 100 A, this relay ensures seamless operation under high voltage conditions. The DC coil voltage ranges from 12 to 48 V, catering to diverse power requirements. Built to last, this relay has a mechanical life expectancy of 1 x 10^6 min and an electrical life expectancy of 1 x 10^2 min. Additionally, it complies with various industry standards such as AC dielectric strength requirements, making it a trusted choice for institutional and government procurement needs.
Product Specifications
Specifications Ac Dielectric Strength Between Contact And Coil
4000 V
Specifications Ac Dielectric Strength Between Open Contact
1000 V
Specifications Contact Configuration
1A
Specifications Contact Rating Resistive Load At 200 Volts V Dc V
100 A
Specifications Dc Coil Voltage
12 to 48 V
Specifications Dc Power Consumption
3.2 W
Specifications Electrical Life Expectancy
1 x 102 min
Specifications Maximum Allowable Contact Current
100 A
Specifications Mechanical Life Expectancy
1 x 106 min
Specifications Outline Height
46.5 mm
Specifications Outline Length
50 mm
Specifications Outline Width
41.5 mm
