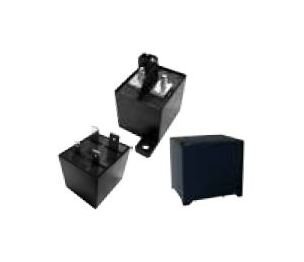

Song Chuan MV021 Middle Voltage Relay
Song Chuan MV021 Middle Voltage Relay
SKU:SON-f35676
Reliable Song Chuan MV021 Middle Voltage Relay for medium voltage applications. Compact design, high performance, and safety features for institutional buyers.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Song Chuan MV021 Middle Voltage Relay
$29.99
Quantity: 1
Claim Your Seller Account
Song Chuan MV021 Middle Voltage Relay
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Song Chuan MV021 Middle Voltage Relay is a reliable and efficient solution for medium voltage applications. With a contact configuration of 1A and a maximum allowable contact current of 150A, this relay ensures high performance and safety. Its compact outline dimensions of 50mm x 41.5mm x 46.5mm make it suitable for various installations. The DC coil voltage range of 12 to 48V, along with low power consumption of 3.2W, enhances energy efficiency. This relay meets rigorous industry standards for AC dielectric strength and offers a long electrical life expectancy, making it ideal for institutional and government procurement needs.
Product Specifications
Specifications Ac Dielectric Strength Between Contact And Coil
4000 V
Specifications Ac Dielectric Strength Between Open Contact
1000 V
Specifications Contact Configuration
1A
Specifications Contact Rating Resistive Load At 60 Volts V Dc Vo
150 A
Specifications Dc Coil Voltage
12 to 48 V
Specifications Dc Power Consumption
3.2 W
Specifications Electrical Life Expectancy
1 x 103 min
Specifications Maximum Allowable Contact Current
150 A
Specifications Mechanical Life Expectancy
1 x 106 min
Specifications Outline Height
46.5 mm
Specifications Outline Length
50 mm
Specifications Outline Width
41.5 mm
